描述
HIKVISION DS-K1T805MBWX 是海康威視門禁卡機／獨立機，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格為準。

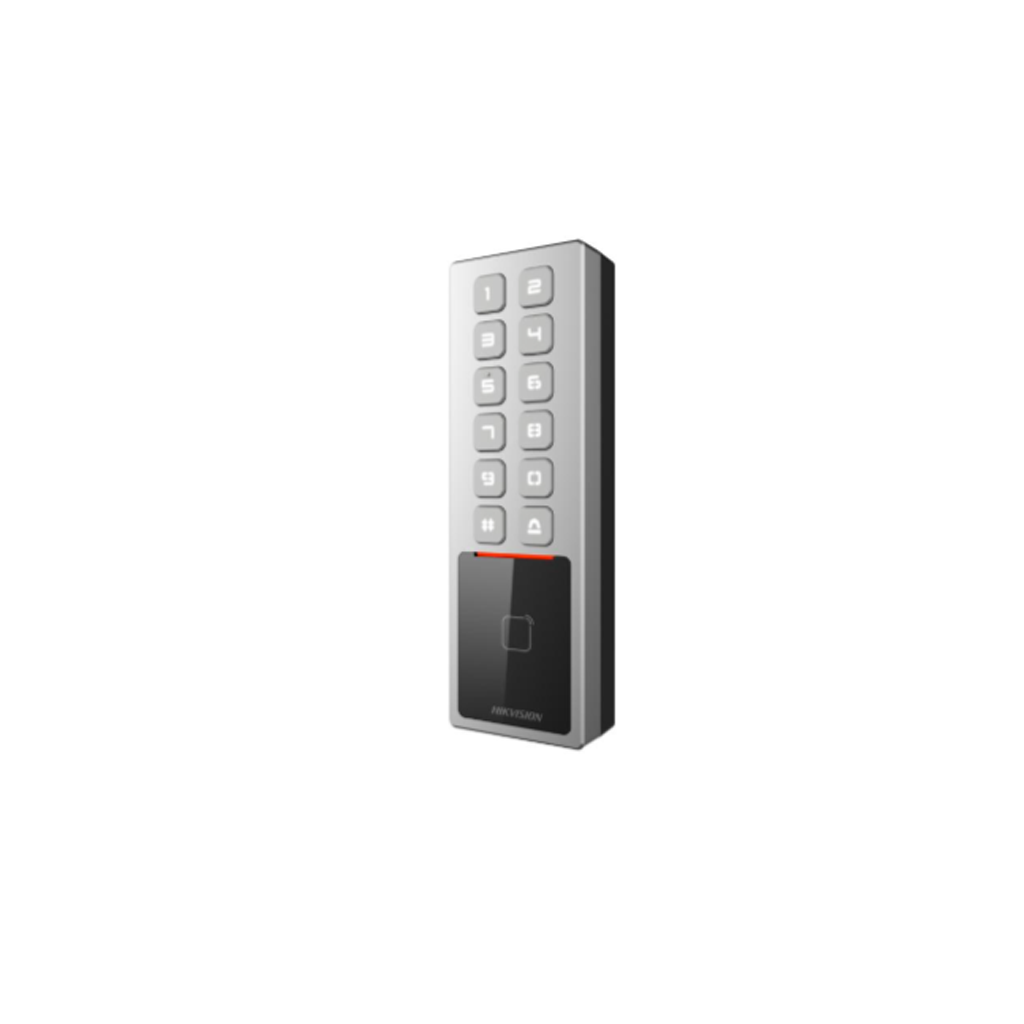

HIKVISION DS-K1T805MBWX
Access Control Terminal
Features
High protective level: IP65 and IK08
Slim and flexible design with metal
10,000 cards and 100,000 events storage
Built-in card reader for M1 card
Supports operation by mobile App (Hik-Connect)
Supports AP configuration, configuration via PC web and mobile web are available
Supports multiple authentication types: card, PIN, and bluetooth
Specification
| System | |
| Operating system | Linux |
| Audio | |
| Audio output | 1 built-in buzzer |
| Network | |
| Bluetooth | Support |
| Wired network | 10/100 Mbps self-adaptive |
| Wi-Fi | 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i |
| Interface | |
| RS-485 | 1, supports OSDP |
| Network interface | 1 |
| Wiegand | Wiegand 26/34 |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 1 |
| TAMPER | 1 |
| Capacity | |
| Card capacity | 10,000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | M1 card |
| Card reading distance | 0 to 4 cm |
| Card reading duration | ＜ 1 s |
| Function | |
| Hik-Connect | Support |
| Configuration via Web Browser | Support PC web configuration and mobile web operation |
| General | |
| Power supply | 12 VDC/1 A |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0% to 90% (no condensing) |
| Dimensions | 57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″) |
| Power consumption | ≤ 12 W |
