描述

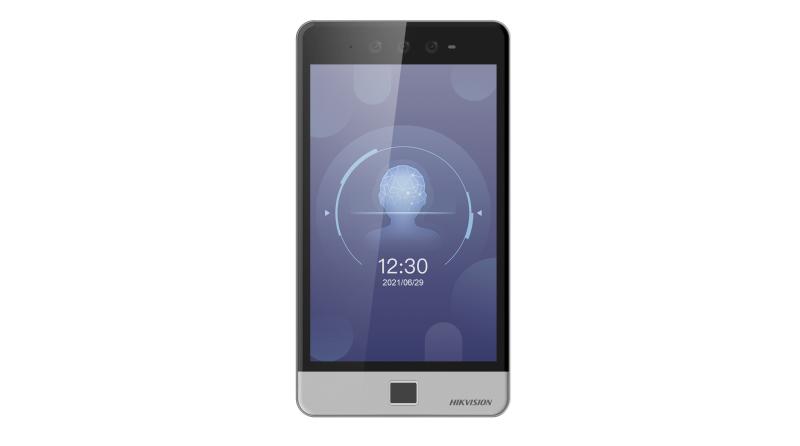

DS-K1T981MF
Ultra Iris Recognition Terminal
DS-K1T981MF 屬海康威視門禁產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
Display
| Screen size |
8 inch |
| Operation method |
Capacitive touch screen |
| Type |
LCD |
Video
| Lens |
3 (2 for face recognition, 1 for iris recognition) |
| Resolution |
For face recognition: 2 MP For iris recognition: 5 MP |
| FOV |
For face recognition: HFOV = 44°; VFOV = 88°; DFOV = 108° For iris recognition: HFOV = 19.9°; VFOV = 14.5°; DFOV = 24.5° |
Audio
| Audio quality |
Noise suppression and echo cancellation |
Network
| Wired network |
Support |
| Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
Interface
| Network interface |
1 RJ-45, 10/100/1000 M self-adaptive |
| Lock control |
1 |
| Exit button |
1 |
| Door contact input |
1 |
| Alarm input |
2 |
| Alarm output |
1 |
| TAMPER |
1 |
| RS-485 |
1 RS-485 (Half duplex, HIKVISION) |
| Wiegand |
1 Wiegand(Hik 26bit,Hik 34bit) |
| USB |
1 |
Capacity
Authentication
| Iris recognition distance |
40 to 70 cm |
| Iris registration duration |
＜ 5 s |
| Iris recognition duration |
＜ 1 s |
| Card type |
M1 card |
| Card reading frequency |
13.56 MHz |
General
| Power supply |
12 VDC, 3 A |
| Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity |
10 to 90% (no condensing) |
| Dimensions |
126 mm × 232 mm × 27 mm (5.0" × 9.1" × 1.1") |
| Installation |
Wall mounting |
| Language |
English, Spanish (South America), Thai, Arabic, Russian, Portuguese (Brazil) |
| Platform |
Hik-ProConnect and HikCentral Professional |
Function
| Face anti-spoofing |
Support |
| Time synchronization |
Support |
