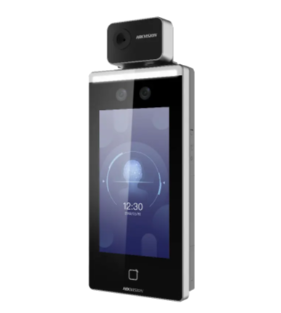

Pro Face Access Terminal
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
- Recognition distance: 0.3 to 1.8 m
- Face mask detection
- Displays temperature measurement results on the authentication page
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens Built-in Mifare card reading module
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- 6000 face capacity, 6000 card capacity, and 100,000 event capacity
Specification
Temperature Measurement
- Temperature Range : 30 °C to 45 °C (86 °F to 113 °F)
- Sensor : Vanadium Oxide uncooled sensor
- Resolution : 120 × 160
- Frame Rate : 25 fps
- Measurement Accuracy : 0.1 °C
- Measurement Deviation : ± 0.5 °C
- Measuring Distance : 0.3 to 1.8 m
Display
- Size : 7-inch
- Type : Touch screen
Video
- FOV : HFOV= 46°; VFOV= 87°
- Pixel : 2 MP
- Lens : Dual-lens
Network
- Wired Network : Support, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface : 1
- RS-485 : 1
- Wiegand : 1
- Lock Output : 1
- Exit Button : 1
- Door Contact Input : 1
- IO Input : 2
- IO Output : 1
- TAMPER : 1
Capacity
- Card Capacity : 6000
- Face Capacity : 6000
- Event Capacity : 100,000
Authentication
- Card Type : M1 card
- Card Reading Distance : 0 to 5 cm
- Card Reading Duration : ＜ 1 s
- Face Recognition Duration : ＜ 0.2 s per person
- Face Recognition Distance : 0.3 to 1.8 m
General
- Power Supply : 12 VDC/2 A
- Working Temperature
0 °C to 50 °C (32 °F to 122 °F)
For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
- Working Humidity : 10 to 90% (No condensing)
- Application Environment : Indoor and windless environment use only
- Weight
Gross Weight: 1.89 kg (4.17 lb)
Net Weight: 1.04 kg (2.29 lb)
Function
- Face Anti-Spoofing : Support
- Live View : Support
- Audio Prompt : Support
