描述
HIKVISION DS-K2704X Access Controller 是海康威視門禁控制器，用於多門盤。香港防盜為安裝商及經銷商。門數及擴展以原廠規格為準，並預留消防解鎖及 UPS。

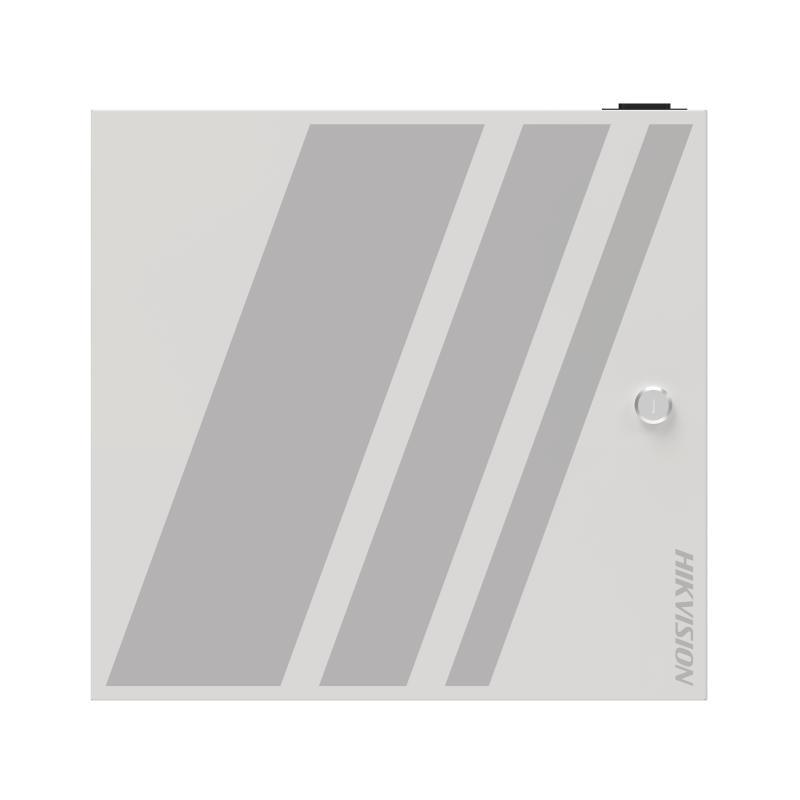

DS-K2704X
Access Controller
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Operating systemLinux
- Network
- Wired network1, 10/100/1000 Mbps self-adaptive
- Interface
- Network interface1
- Lock control4
- Exit button4
- Door contact input4
- Alarm input8
- Alarm output4
- TAMPER1
- RS-4857, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand4, standard 26/34 input, supports custom Wiegand settings
- USB1, USB 2.0
- Fire interface1
- Capacity
- User capacity100,000
- Fingerprint capacity10,000
- Card capacity200,000
- Event capacity600,000
- Linked door capacitySelf: 4 doors Extended: up to 128 doors (connected with 62 access modules)
- Linked card reader capaciry8 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
- Authentication
- Fingerprint recognition duration＜ 1 s
- General
- Indicator12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status
- BatteryCharge and discharge
- Power supply100 VAC to 240 VAC
- Power consumption≤ 102 W
- Working temperature-10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity0% to 90% (No condensing)
- InstallationWall mounting
- LanguageEnglish, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
- Function
- Configuration via Web browserSupport
- Multi-factor authenticationSupport
- First person inSupport
- Anti-passbackSupport 32 routes (64 card readers each)
- Multi-door interlockingSupport 32 groups (32 doors each)
