描述

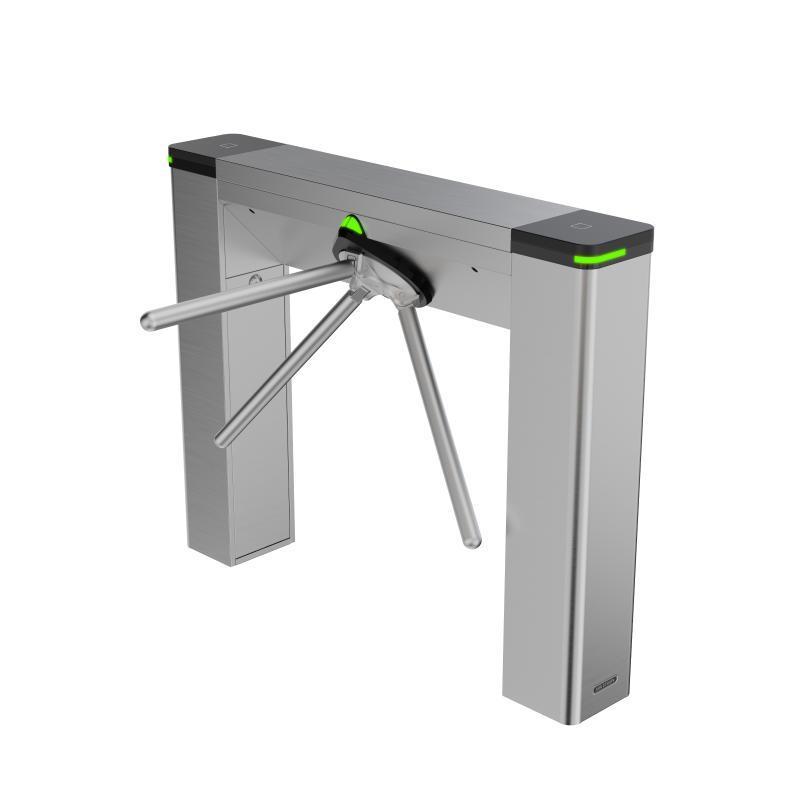

HIKVISION DS-K3G501BX Pro Tripod Turnstile 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K3G501BX
Pro Tripod Turnstile
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Motor/
- MCBF≥ 3 million times
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Interface
- Network interface1
- Lock control2
- Exit button2
- Alarm output2
- RS-4854
- RS-2322
- Wiegand2
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupplied
- Capacity
- Card capacity500,000
- Event capacity500,000
- Authentication
- CardEM card, M1 card, and DESfire card
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Audio promptSupport
- Communication protocolISAPI
- Keypad configurationSupport
- KeyfobSupport, 433 MHz/868 MHz, within 50 m
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier material1.2 mm stainless pipe
- Pedestal materialSUS304 stainless steel 1.5 mm
- Power consumptionStandby: 20 W Working: 35 W Peak: 45 W
- Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 232 mm × 960 mm × 1208 mm (9.1″ × 37.8″ × 47.6″) With package: 410 mm × 1180 mm × 1350 mm (16.1″ × 46.5″ × 53.1″)
- Without package: 41.78 kg (92.11 lb)With package：51.45 kg(113.43lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodPower supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz,
- LanguageArabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Mexico), Spanish (Spain), Thai, Russian, English
- Configuration
- Lane width550
- Pedestal length1210 mm
- Module selectionNO
- Pedestal width200 mm
- Wall distance10 mm
- BaseYES
- Barrier materialStainless steel pipe
- Application environmentIndoor and outdoor
- Authentication modeCard;Face;QR code
- Card typeEM;Desfire
- Recommended width550 mm
- Base modelDS-KSM01/G501
- Side pedestalYES
- Side pedestal typeEmpty (230 mm)/fence (130 mm)
- Product typeTripod Turnstile
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width29 mm
- Convert FaceNO
- Door wing gapDefault:50mm
