描述

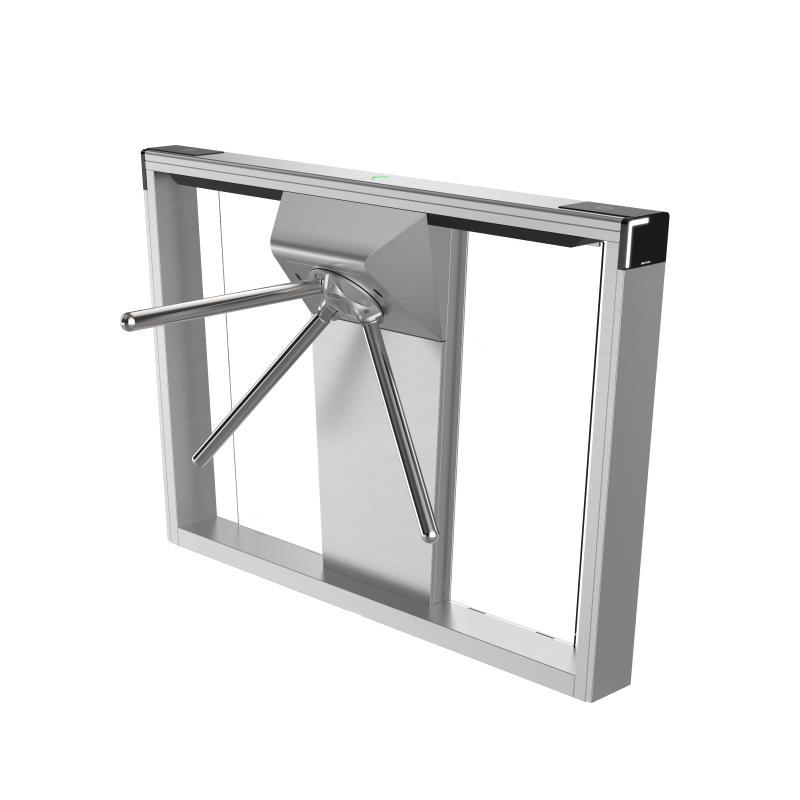

HIKVISION DS-K3G530LX Pro Tripod Turnstile 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K3G530LX
Pro Tripod Turnstile
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorBrushless motor
- MCBF≥ 10 million times
- Network
- Wired networkNA
- Interface
- Network interfaceNA
- Lock controlNA
- Exit button2
- Alarm outputNA
- TAMPERNA
- RS-485NA
- RS-232NA
- WiegandNA
- Fire alarm input1
- Case inputNA
- Hardware
- Access controllerNot supplied
- Capacity
- Card capacityNA
- Event capacityNA
- Authentication
- CardNA
- Function
- Configuration via PC WebNot support
- Configuration via mobile WebNot support
- Audio promptNot support
- Communication protocolNA
- Keypad configurationSupport
- KeyfobNot support
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier material1.2 mm stainless pipe
- Pedestal materialSUS304 stainless steel 1.5 mm (mostly)
- Power consumptionStandby: 25 W Working: 55 W Peak: 65 W
- Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity0% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 1500 mm × 130 mm × 1002.5 mm (59.1″ × 5.1″ × 39.5″) With package: 1660 mm × 510 mm × 1305 mm (65.4″ × 20.1″ × 51.4″)
- Net: 52.22 kg (115.13 lb) Gross: 65.59 kg (144.6 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply method100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz, 1.0 to 1.5 A
- Configuration
- Lane width550
- Pedestal length1500 mm
- Module selectionNO
- Pedestal width130 mm
- Wall distance20 mm
- BaseYES
- Barrier materialStainless steel pipe
- Application environmentIndoor and outdoor
- Authentication modeFace
- Card typeEM;M1;Desfire
- Recommended width550 mm
- Base modelDS-K3G530X-BASE
- Side pedestalYES
- Side pedestal typeFence (130 mm)
- Product typeTripod Turnstile
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width105 mm
- Convert FaceNO
- Door wing gap36 mm
