描述
HIKVISION DS-K3H4210X-120 Value Full Height Turnstile 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。

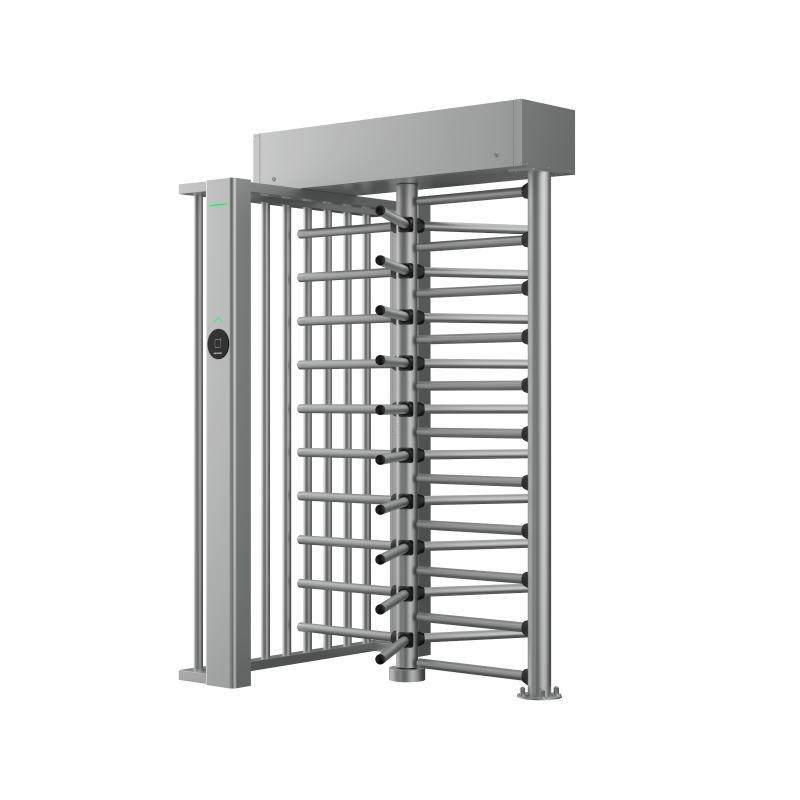

DS-K3H4210X-120
Value Full Height Turnstile
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MCBF≥ 3 million times
- Rotation Angle120°
- Network
- Wi-FiSupport
- Interface
- Network interface1
- Exit button2
- Alarm output2
- TAMPERNA
- RS-4854
- Wiegand2
- Fire alarm input1
- Case input2
- Counting output× 2
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- AP modeSupport
- Communication protocolISAPI,ISUP
- Keypad configurationSupport
- KeyfobSupport, 433 MHz/868 MHz, within 50 m
- General
- ThroughputMore than 30 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width600 mm
- Barrier material1.0 mm stainless pipe
- Pedestal materialSUS304 stainless steel 1.2mm (mostly)
- Power consumptionStandby: 45 W Working: 50 W Peak: 55 W
- Working temperature -15 °C to 65 °C (5 °F to 149 °F)
- Working humidity10% to 90% (No condensing)
- Protective levelIPX4
- Anti-corrosionCorrosion-resistant spray painting
- DimensionsWithout package: 2250 mm × 1240 mm × 1245 mm (88.58″ × 48.82″ × 49.02″) With package: 2200 mm × 1050 mm × 800 mm (86.61″ × 41.34″ × 31.50″)
- Net: 122.68 kg (270.46 lb) Gross: 267.00 kg (588.63 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodPower supply: 100 to 240 VAC~, 50/60 Hz, 0.5 to 1 A
- Power supply for face recognition moduleSupport
