描述

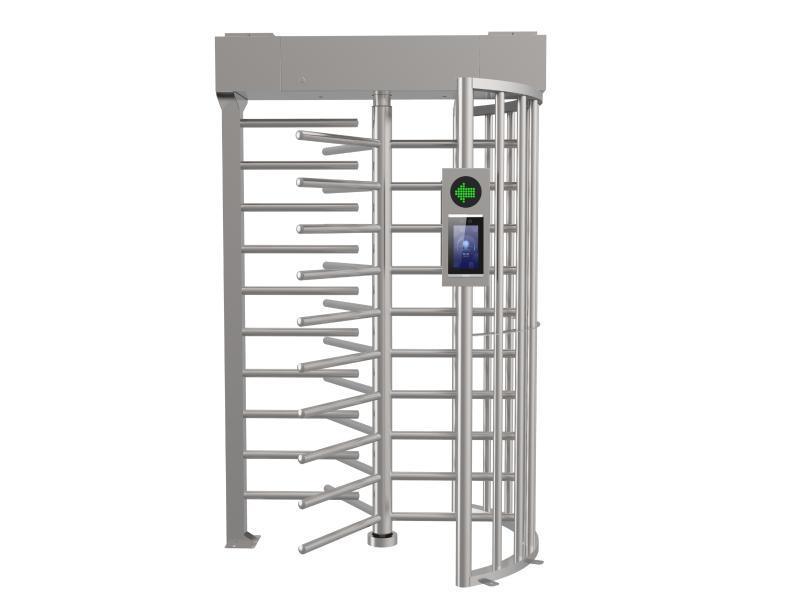

HIKVISION DS-K3H4410-120 Value Full Height Turnstile 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K3H4410-120
Value Full Height Turnstile
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MCBFMore than 2 million times
- MotorNA
- General
- ThroughputMore than 30 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width600mm
- Pedestal materialSUS304 stainless steel 1.2mm(0.05”) Stainless steel pipe 1.0mm(0.04”)
- Power supply100 to 240 VAC; 50 to 60 Hz
- Working temperature-15℃ ~ 55℃ ( 5℉ ~ 131℉ )
- Working humidity10% to 90% (No Condensing)
- DimensionsWithout package: 1400mm x 1200mm x 2230mm(55.1” x 47.3” x 87.8”) With package: 2135mm x 1435mm x 1115mm(84.1” x 56.5” x 43.9”)
- Application environmentIndoor and outdoor
- Without package: 100 kg (221 lbs) With package: 200 kg (441 lbs)
- Rotation angle120°
