描述
HIKVISION DS-K3Y220LX Value Flap Barriers 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。

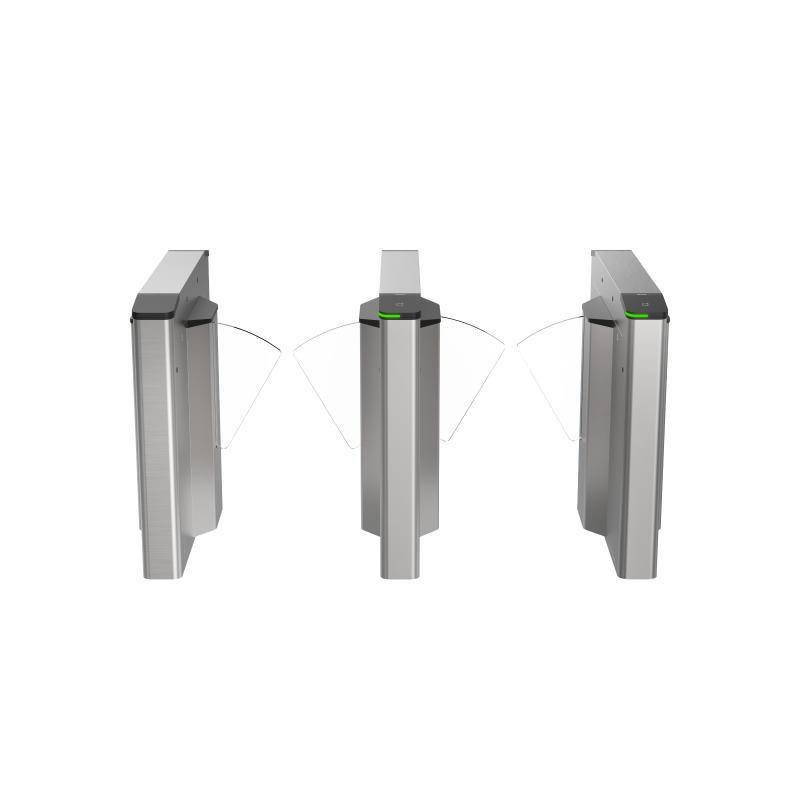

DS-K3Y220LX
Value Flap Barriers
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorBrushless motor
- MCBF≥ 3 million
- Interface
- Exit button2
- Alarm input1
- General
- Throughput20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- IR light detectors4 pairs
- Lane width550 mm (21.65”)
- Barrier materialAcrylic glass
- Pedestal materialSUS304 stainless steel
- Built-in access controllerOptional
- Power supply100 to 240 VAC; 50 to 60 Hz
- Power consumption75 W (stand by)
- Working temperature-30 °C to 65 °C (-22 °F to 149 °F)
- Working humidity10% to 95% (No Condensing)
- (Net) Left: 30.15 kg (66.5 lbs); Middle: 38.27 kg (84.4 lbs); Right: 29.58 kg (64.8 lbs); (Rough) Left: 49.15 kg (108.4 lbs); Middle: 56.27 kg (124.1 lbs); Right: 37.85 kg (107.1 lbs);
- Application environmentIndoor and outdoor
- Dimensions1205 mm × 303 mm × 1000 mm (47.44″ × 11.92″ × 39.37″)
- Configuration
- Module selectionNO
- BaseYES
- Base modelDS-KSM01/Y220
- Product typeFlap barrier
