描述

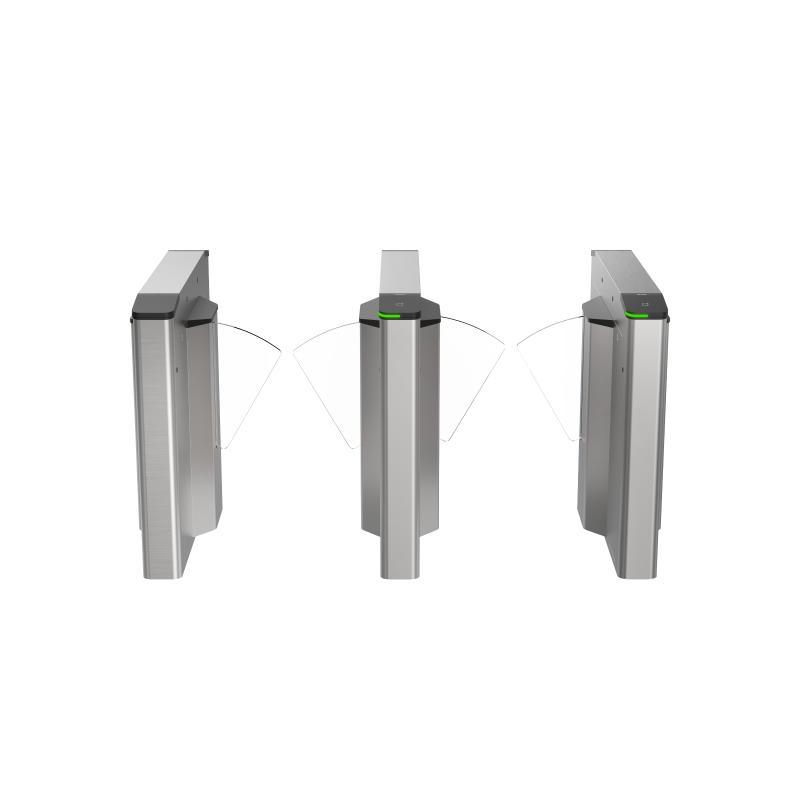

HIKVISION DS-K3Y220X Value Flap Barriers 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K3Y220X
Value Flap Barriers
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorBrushless motor
- MCBF≥ 3 million times
- Interface
- Lock control2
- Exit button2
- Alarm output2
- WiegandMain: 1 Sub: 1
- Hardware
- Access controllerSupplied
- Capacity
- Card capacity200,000
- Event capacity250,000
- Authentication
- Card TypeM1 card or EM card
- General
- Throughput20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm (21.65″)
- Barrier materialAcrylic glass
- Pedestal materialSUS304 stainless steel
- Power consumption75 W (stand by)
- Working temperature -30 °C to 65 °C (-22 °F to 149 °F)
- Working humidity10% to 95% (No condensing)
- DimensionsWithout package: 1205 mm × 303 mm × 1000 mm (47.44″ × 11.92″ × 39.37″) With package: 1300 mm × 380 mm × 1100 mm (51.2″ × 14.96″ × 43.3″)
- Net: Left: 32.15 kg (70.9 lb) Middle: 40.27 kg (88.8 lb) Right: 31.58 kg(69.2 lb) Gross: Left: 51.15 kg (112.8 lb) Middle: 58.27 kg (128.5 lb) Right: 39.85 kg (111.5 lb)
- Configuration
- Module selectionYES
- Lane width550
- Pedestal length1205 mm
- Pedestal width303 mm
- Wall distance20 mm
- Barrier materialAcrylic glass
- Authentication modeCard;Face
- Card typeEM;M1
- Recommended width550 mm
- BaseYES
- Base modelDS-KSM01/Y220
- Product typeFlap barrier
- Remote controller typeNA
- Convert FaceNO
- Door wing gapDefault:50mm
