描述

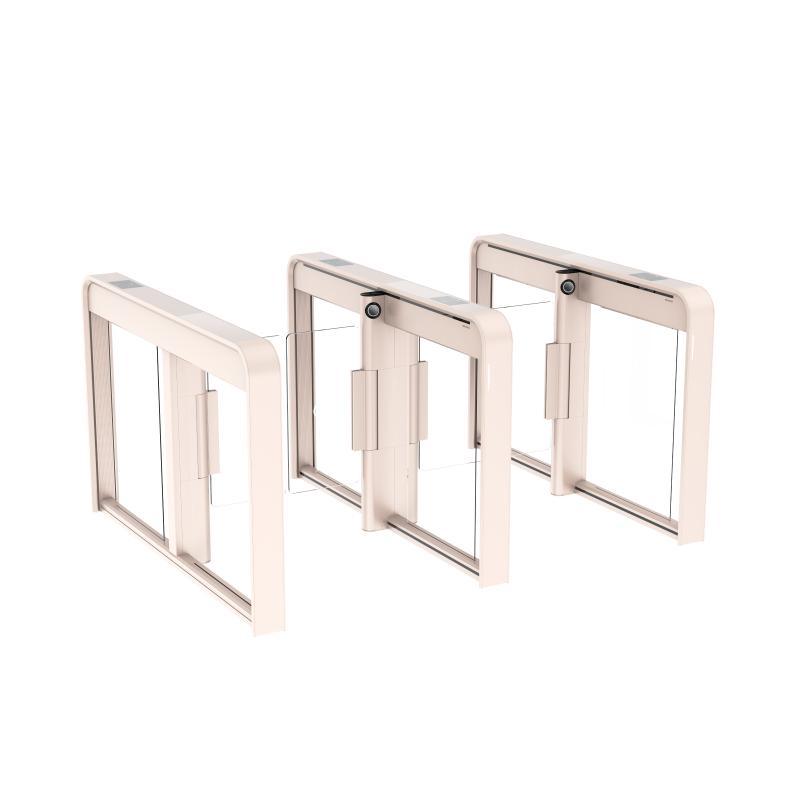

HIKVISION DS-K6B630TX Smart Pro Swing Barriers 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K6B630TX
Smart Pro Swing Barriers
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorServo motor
- MCBF≥ 11 million times
- BrakeSupport
- Door open duration5 to 60 sec
- dToF sensor× 12
- Display
- Screen size6.95-inch
- Operation methodDisplay screen
- TypeIPS screen
- Resolution600 × 1024
- Video
- LensDual lens
- Video compression standardH.264
- Resolution2 MP
- FOV
Horizontal: 59°
Vertical: 108°
- WDRSupport
- Video standardPAL by default, support NTSC
- Focal length2.8mm
- ApertureF1.6
- Audio
- Audio compression standardG.711U
- Audio compression bitrate16 Kbps
- Audio outputSupport
- Volume adjustmentSupport
- Power output5.5W
- Network
- Wired networkSupport,10M/100M
- Wi-FiFor AP mode only
- Interface
- Network interface1
- Exit button
Main: 1
Sub: 1
- Alarm output4
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupport
- SupercapacitorSupport
- Network switchNot supplied
- Capacity
- Face capacity100,000
- Card capacity500,000
- Event capacity1000,000
- Palm print and palm vein capacity10,000
- Authentication
- Face recognition distance0 m to 2 m
- Face recognition accuracy rate＞99%
- Face recognition duration＜200 ms
- CardEM card or M1 card or Desfire card (actual corresponding card type refer to product model names)
- Card reading frequency13.56 MHz or 125 KHz
- Card reading distance3cm
- Card reading duration＜1s
- Palm print and palm veinSupport (optional)
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Hik-ConnectSupport
- Multi-factor authenticationSupport
- Face anti-spoofingSupport
- Face mask recognitionSupport
- Built-in face recognitionSupport
- Communication protocolISAPI
- General
- Lane width550 mm to 1100 mm (21.7″ to 43.3″)
- Barrier material10 mm acrylic glass
- Pedestal materialAluminium alloy
- IndicatorLane status indicator, barrier light
- Power consumption
Standby: 70 W
Working: 180 W
Peak: 280 W
- Working temperature -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 95% (No condensing)
- Protective levelIP40
- Dimensions
Without package: 1550 mm × 120 mm × 1002 mm (61.02″ × 4.72″ × 39.45″)
With package: 1760 mm × 500 mm × 1225 mm (69.30 × 19.69″ × 48.23″)”
-
Net:
Left: 34.19 kg (75.375 lb)
Middle: 42.46 kg (93.6 lb)
Right: 34.76 kg(76.63 lb)
Gross:
Left: 62.91 kg (138.7 lb)
Middle: 71.52 kg (157.67 lb)
Right: 63.58 kg (140.17 lb)
- Power supply method100 to 240 VAC~, 50/60 Hz, 1.6A
- ColorRose gold by default, support Aluminum Natural / Champagne Gold / Space Grey / Obsidian Black by customization.
- LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
- Interconnecting cable length5.5m
- Configuration
- Lane width650;750;900;1100
- Pedestal length1550 mm
- Module selectionYES
- Pedestal width120 mm
- Wall distance20 mm
- BaseYES
- Barrier materialAcrylic glass
- Application environmentindoor
- Authentication modeCard;Face;QR code;Palm & Vein
- Card typeEM;Desfire
- Recommended width650 mm
- Base modelDS-KSM02/B630
- Product typeSwing barrier
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width66 mm
- Convert FaceNO
- Door HeightDefault(0.85m)
- Door wing gapDefault:50mm
- Integrated AuthCard;Face
