描述

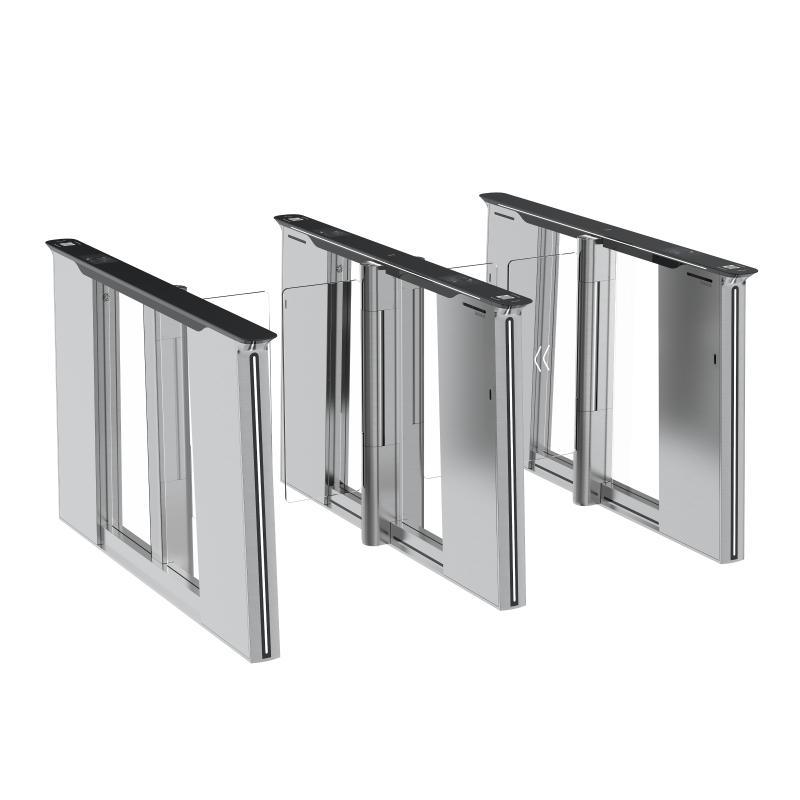

HIKVISION DS-K6B961X Ultra Swing Barriers 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K6B961X
Ultra Swing Barriers
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorServo motor
- MCBF≥ 12 million times
- BrakeSupport
- Door open duration5 to 60 sec
- dToF sensor24
- Display
- Screen size6.95-inch
- Operation methodDisplay screen
- TypeIPS screen
- Resolution600 × 1024
- Network
- Wired networkSupport,10M/100M
- Wi-FiFor AP mode only
- Interface
- Network interface2
- Lock controlNA
- Exit buttonMain: 1 Sub: 1
- Alarm output4
- TAMPER2
- RS-485Main: 1 Sub: 1
- RS-232Main: 1 Sub: 1
- WiegandMain: 1 Sub: 1
- USBMain: 1 Sub: 1
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupport
- SupercapacitorSupport
- Network switchNot supplied
- Capacity
- Card capacity500,000
- Event capacity1000,000
- Authentication
- CardDESfire & M1 card
- Card reading frequency13.56 MHz
- Card reading distance3cm
- Card reading duration＜1s
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebSupport
- Hik-ConnectSupport
- Multi-factor authenticationSupport
- Communication protocolISAPI
- KeyfobSupport, 433 MHz/868 MHz, within 50 m
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm to 1100 mm (21.7″ to 43.3″)
- Barrier material10 mm acrylic glass
- Pedestal materialSUS304 stainless steel 2.0 mm
- IndicatorLane status indicator, authentication indicator and barrier light
- Power consumptionStandby: 100 W Working: 220 W Peak: 380 W
- Working temperature -20 °C to 55 °C (4 °F to 131 °F)
- Working humidity10% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 1651 mm × 117 mm × 1020 mm (65.0″ × 4.6″ × 40.2″) With package: 1905 mm × 550 mm × 1330 mm (75.0″ × 27.1″ × 52.4″)
- Net: Left: 104 kg (229.3 lb) Middle: 133 kg (293.2 lb) Right: 104 kg(229.3 lb) Gross: Left: 162 kg (357.2 lb) Middle: 191 kg (421.1 lb) Right: 162 kg (357.2 lb)
- Power supply methodMiddle:100-120V~/200-240V~,50Hz/60Hz,1.6A; Side: 100-240V~,50Hz/60Hz,0.8A
- LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
- Interconnecting cable length5.5m
- Configuration
- Lane width650;750;900;1100
- Pedestal length1651.3 mm
- Module selectionYES
- Pedestal width116.8 mm
- Wall distance20 mm
- BaseYES
- Barrier materialAcrylic glass
- Application environmentindoor
- Authentication modeCard;QR code
- Card typeEM;Desfire
- Recommended width650 mm
- Base modelDS-KSM01/B961
- Product typeSwing barrier
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width62.5 mm
- Built-in displayYES
- Convert FaceNO
- Door HeightDefault(0.94m)
- Door wing gapDefault:50mm
- Integrated AuthCard;QR code
