描述

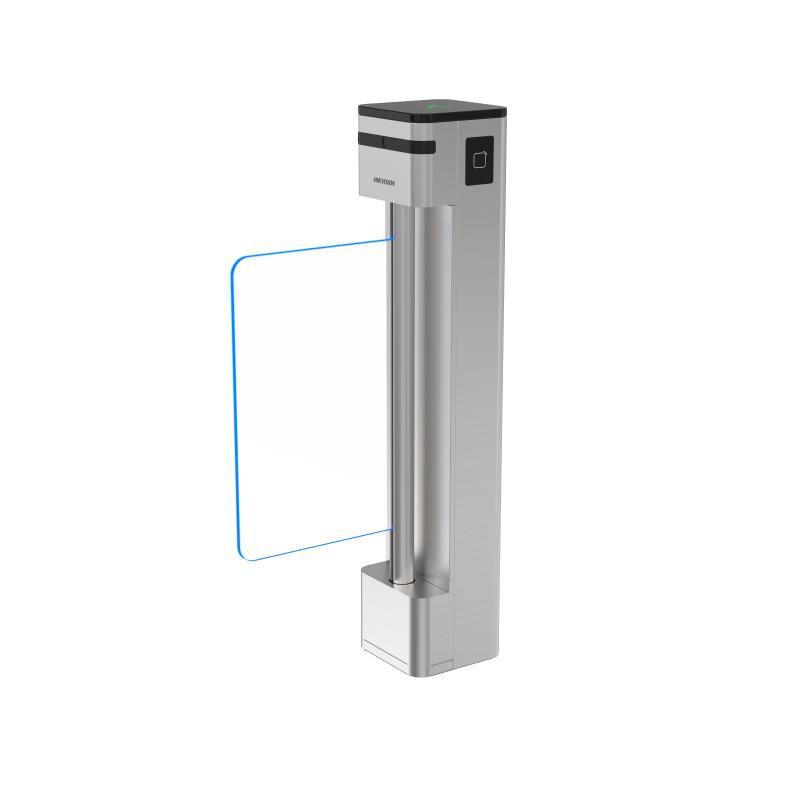

HIKVISION DS-K6BC402X-RS Value Swing Gates (single) 是海康威視通道閘機，用於大堂、廠區或收費通道，通常與讀頭或人面終端聯動。香港防盜為安裝商及經銷商。要一併設計消防／停電行為及殘疾人士通道。
DS-K6BC402X-RS
Value Swing Gates (single)
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- MotorBrushless motor
- MCBF≥ 5 million times
- BrakeNot support
- Door open duration5 to 60 sec
- dToF sensor1 array of sensors
- Audio
- Audio outputSupport
- Volume adjustmentSupport
- Power output5.5 W
- Network
- Wired network10/100 Mbps self-adaptive Ethernet
- Wi-FiNot support
- Interface
- Network interface1
- Lock control2
- Exit button5
- Alarm output2
- TAMPERNA
- RS-4854
- RS-2322
- Wiegand3
- USB1
- Fire alarm input1
- Case input2
- Counting outputNA
- Hardware
- Access controllerSupplied
- SupercapacitorNot supplied
- Network switchNot supplied
- Expansion screwM12x150(3pcs)
- Capacity
- Card capacity500,000
- Event capacity500,000
- Person Capacity500,000
- Authentication
- CardEM card or M1 card (actual corresponding card type refer to product model names).
- Card reading frequency13.56 MHz or 125 KHz
- Card reading distance3cm
- Card reading duration＜1 sec
- Function
- Configuration via PC WebSupport
- Configuration via mobile WebNot support
- Hik-ConnectSupport
- Multi-factor authenticationSupport
- Anti-passbackSupport
- First person inSupport
- Hik-Partner ProSupport
- Audio promptSupport
- Fingerprint recognitionNot support
- AP modeNot support
- Communication protocolISAPI
- KeyfobSupport, 433 MHz or 868 MHz, within 50 m
- General
- Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm to 900 mm (21.65″ to 35.43″)
- Pedestal materialSUS304 stainless steel 1mm
- IndicatorLane status indicator, authentication indicator and barrier light
- Power consumptionStandby: 20 W Working: 45 W Peak: 95 W
- Working temperature-15 °C to 65 °C (5 °F to 149 °F)
- Working humidity10% to 95% (No condensing)
- Protective levelIPX4
- DimensionsWithout package: 1002 mm × 200 mm × 200 mm (39.44″ × 7.87″ × 7.87″) With package: 1160 mm × 565 mm × 300 mm (45.66″ × 22.24″ × 11.81″) 22 Protective level Structure
- Net: 15 kg (34.17 lb) Gross: 17 kg (37.48 lb)
- Approval CE/CB/RoHS/REACH/WEEE
- Power supply methodAdapter: 100 to 240 VAC~, 50/60 Hz, 0.8A
- LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
- Power supply for face recognition moduleSupport
- Configuration
- Lane width550;650;750;850;900
- Pedestal length201 mm
- Module selectionYES
- Pedestal width201 mm
- Wall distance20 mm
- BaseNO
- Barrier materialAcrylic glass;stainless steel pipe
- Application environmentIndoor
- Authentication modeCard;QR code
- Card typeEM;M1
- Recommended width650 mm
- Product typeSwing barrier
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width0 mm
- Access control boardIncluded
- Door wing heightDefault(0.78m);
- Built-in face recognitionNO
- Convert FaceNo
- Door wing gapDefault:47mm
