描述

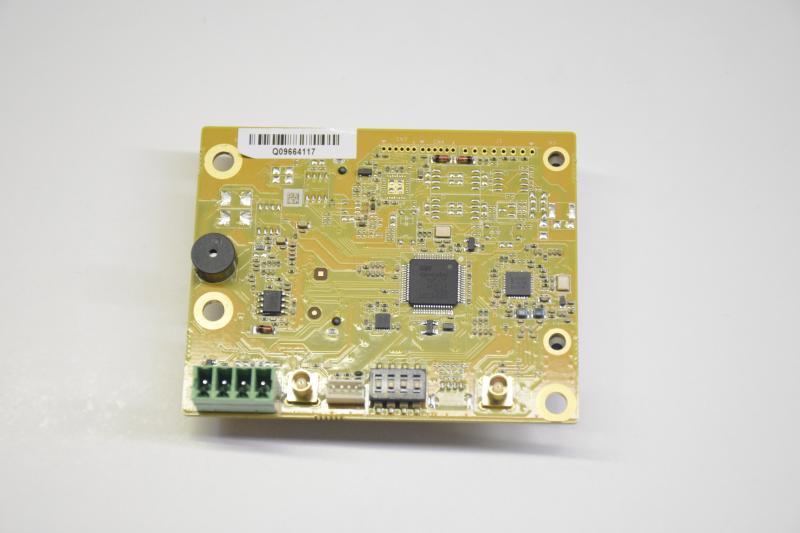

DS-K7CR01
Card reader for turnstiles & speed gates
DS-K7CR01 屬海康威視門禁產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
Interface
| RS-485 | 1 for RS-485 type only |
|---|---|
| USB | 1 for USB type only |
| PSAM card | 1 |
Authentication
| Card reading frequency | 13.56 MHz or 125 KHz |
|---|---|
| Card reading distance | < 4.5 cm |
General
| Power supply | 12 VDC (RS-485) 5 VDC (USB) |
|---|---|
| Power consumption | < 2 W |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 95% |
| Dimensions | Main board: 79 mm × 63 mm × 16 mm (3.1" × 2.5" × 0.6") Antenna (13.56 MHz): 53 mm × 63 mm × 1.2 mm (2.1" × 2.5" × 0.05") Antenna (125 KHz): 86 mm × 69 mm × 2 mm (3.4" × 2.7" × 0.1") |
| Installation | Built-in installation |
Face Recognition Terminal/Authentication
| Card type | EM card or M1 card or Desfire card formats (actual corresponding card type refer to product model names). |
|---|
Function
| M1 card encryption | Support |
|---|
