描述
HIKVISION DS-K7P02 是海康威視出門掣，安裝於門內側，配合電鎖及控制器。香港防盜為安裝商及經銷商。要核對常開／常閉接線及殘障高度。

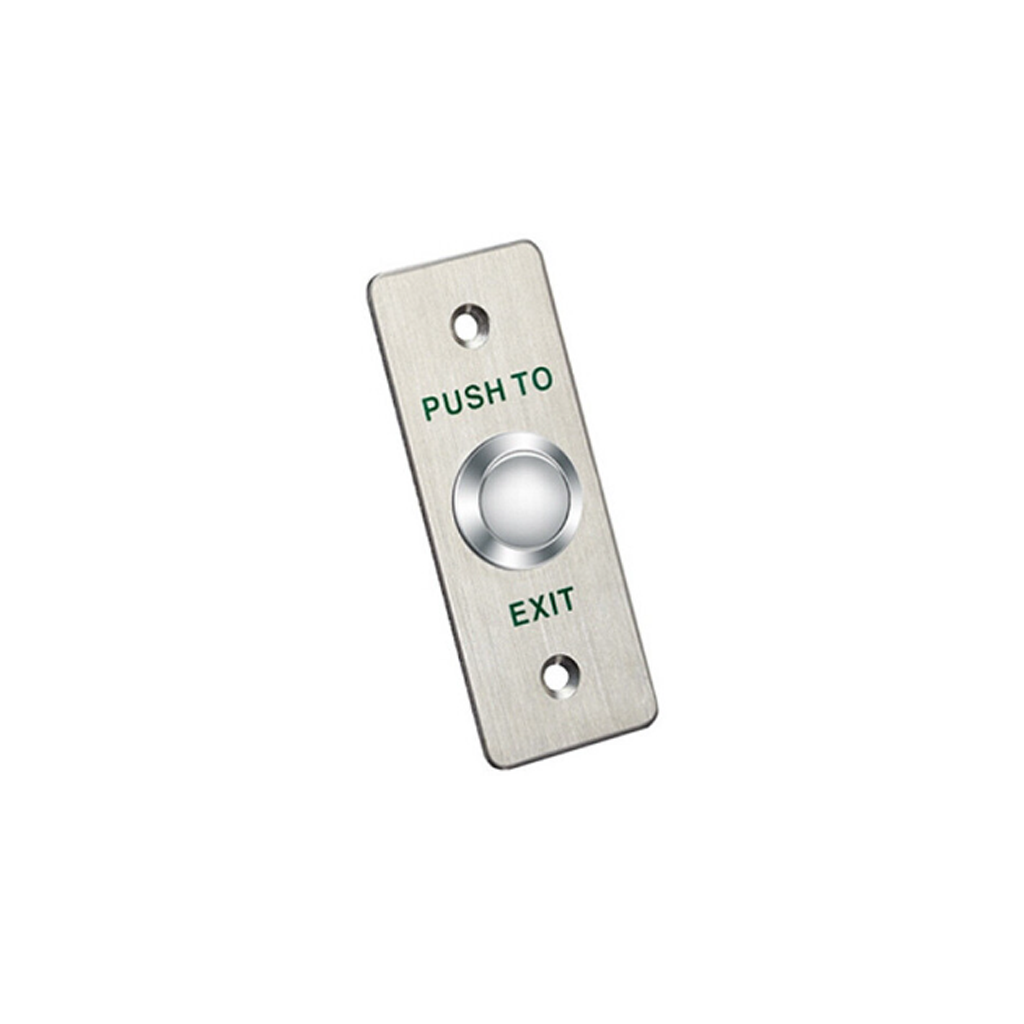

HIKVISION DS-K7P02
Exit Button
- Aluminum alloy panel, metal button
- Dimension(L×W×H): 90 × 35 × 28.9 mm (3.54 × 1.38 × 1.14")
Specification
General
- Power supply : Max. 36 VDC, 3 A
- Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity : 0 to 95% (relative humidity)
- Dimensions : 90 mm × 35 mm × 28.9 mm (3.54" × 1.38" × 1.14")
- Material : Aluminum alloy panel with sandblast, metal button
- Door type : Hollow doorframe and embedded-electric box
- Signal output : NO/NC/COM contact
- Aging Test : Already passed 500 thousand times aging test
- Available Model : DS-K7P02
