描述
HIKVISION DS-K7P03 是海康威視出門掣，安裝於門內側，配合電鎖及控制器。香港防盜為安裝商及經銷商。要核對常開／常閉接線及殘障高度。

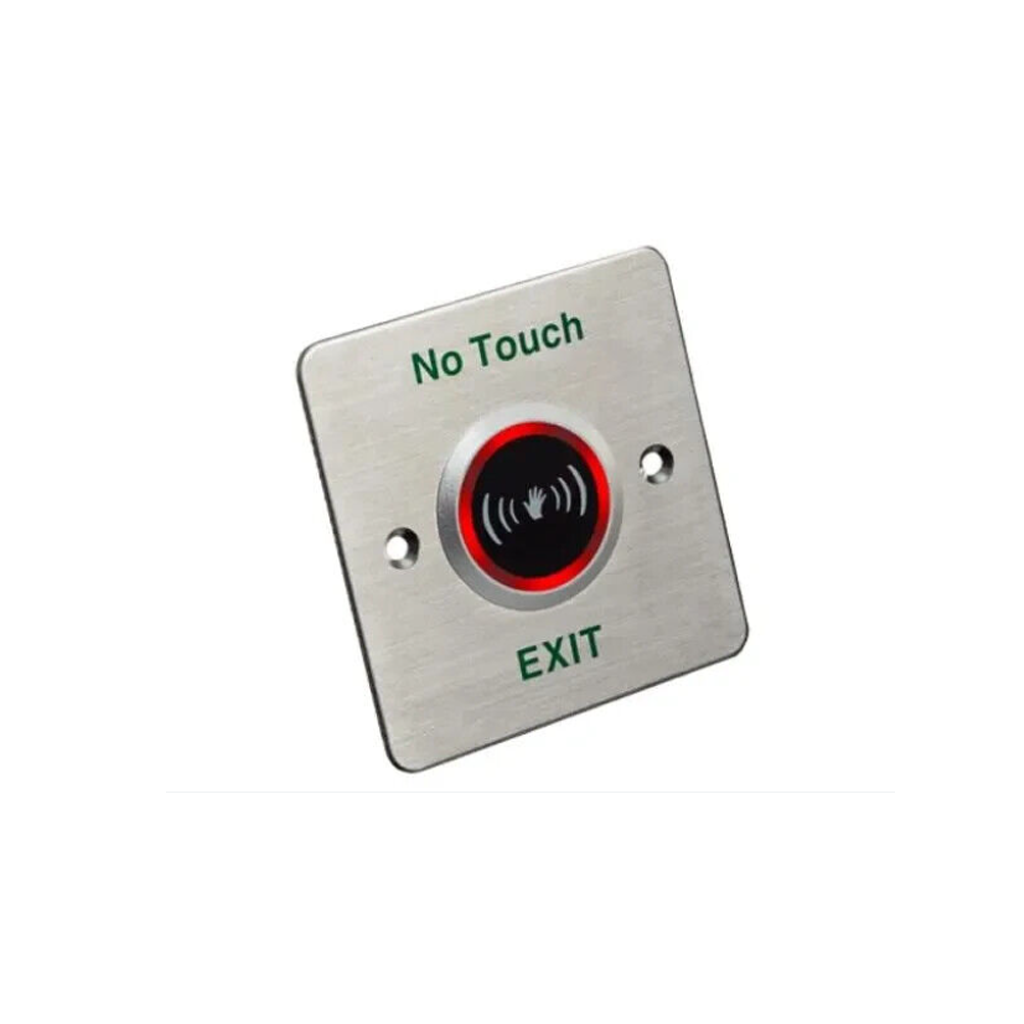

HIKVISION DS-K7P03
Exit & Emergency Button
- New version of DS-K7P03, there is "/T" in the label
- Stainless steel panel, Led Indicator
- Dimension(L×W×H): 86×86×25.7mm(3.39×3.39×1.01")
Specification
General
- Power supply : 30 VDC, 1 A
- Working temperature : -20 °C to 50 °C (-4 °F to 122 °F)
- Working humidity : 0 to 95% (relative humidity)
- Dimensions : 86 mm × 86 mm × 25.7 mm (3.39" × 3.39" × 1.01")
- Weight : 0.2 kg (0.44 lb)
- Material : Panel: stainless steel
- Door type : All kinds of narrow doorframes
- Signal output : NO/NC/COM contact
- Aging Test : Already passed 1 million times aging test
- Available Model : DS-K7P03/T
Exit Button
- Output contact : NO/NC/COM contact
- Aging test : Already passed 1 million times aging test
- Suitable door : All kinds of narrow doorframes
