描述
HIKVISION DS-K7P06 是海康威視出門掣，安裝於門內側，配合電鎖及控制器。香港防盜為安裝商及經銷商。要核對常開／常閉接線及殘障高度。

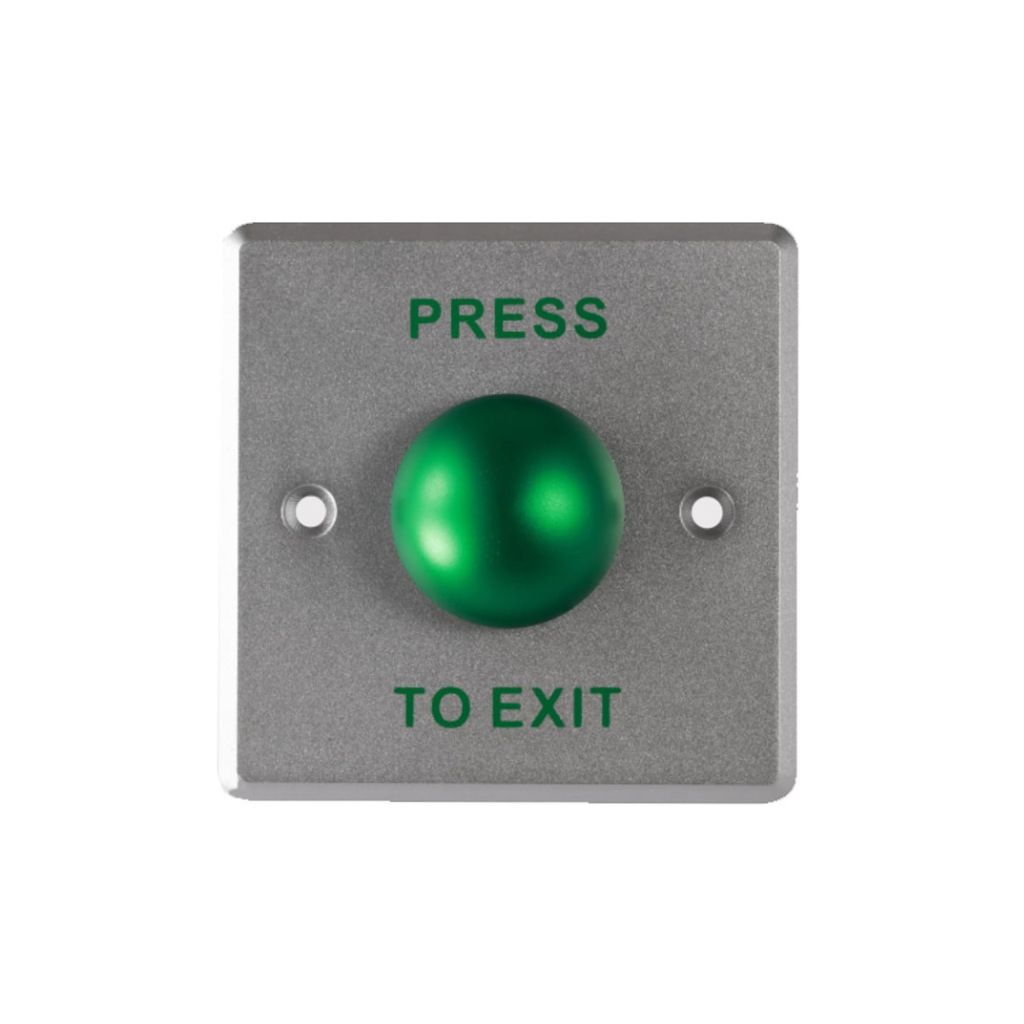

HIKVISION DS-K7P06
Exit & Emergency Button
Features
- Dimension (L×W×H): 86×86×28.9mm(3.39×3.39×1.14″);
- Structure: aluminum alloy panel, metal button;
- Current Rating: 3A@36VDC Max;
- Output Contact: NO/NC/COM Contact;
- Aging Test: already passed 500 thousand times aging test;
- Suitable Doors: hollow doorframe and embedded-electric box;
- Working Temperature: -10°C to +55°C (14°F to 131°F);
- Working Humidity: 0 to 95% (relative humidity);
- Panel: aluminum panel with sandblast;
- Product Weight: 0.25kg (0.55lb).
Specification
| General | |
| Output Contact | NO/NC/COM Contact |
| Aging Test | Already passed 500 thousand times aging test |
| Structure | Stainless steel panel, metal button, metal bottom case |
| Current Rating | 3A@36VDC Max |
| Accessories | Equipped with metal bottom case |
| Suitable Doors | All kinds of narrow doorframes |
| Panel | Brushed stainless steel panel |
| Bottom Case | Polished zinc alloy with chromium electroplating |
| Working Humidity | 0 to 95% (relative humidity) |
| Working Temperature | -20°C to +65°C (-4°F to +149°F) |
| Dimensions (L×W×H) | 87.7mm × 87.7mm × 44mm(3.46”×3.46”×2.13″) |
| Weight | 0.23kg (0.51lb) |
