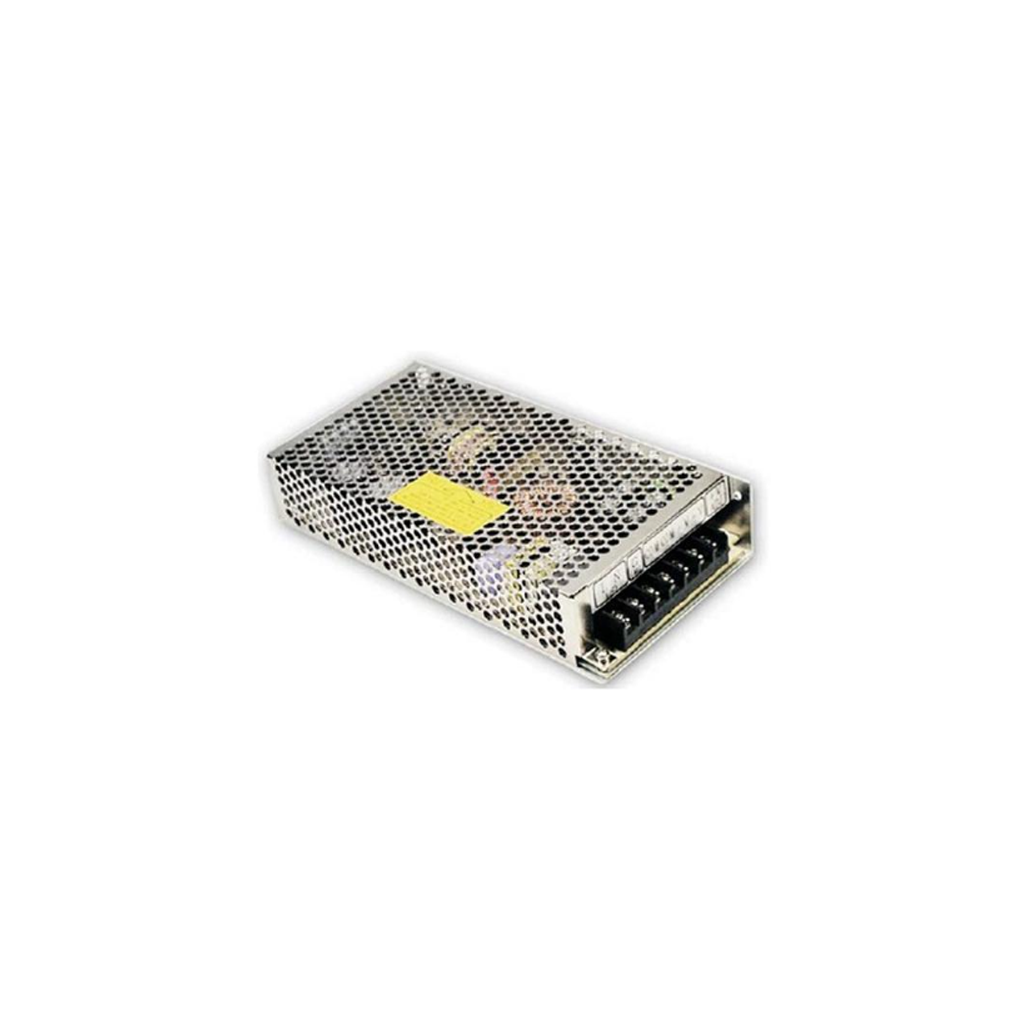

HIKVISION DS-KAW150-2N
power supply
Features
24 VDC, 150 W output power supply for door station with LED power indicator
Short circuit protection, over load protection, and over power voltage protection
Natural air cooling
105 °C long life electrolytic capacitor
5 seconds 300VAC surge voltage input tolerance
High working temperature up to 70 °C
Specification
| Device interfaces | |
| Power supply input | 1, 100 VAC to 240 VAC |
| Power supply output | Max. 24 VDC, 6.25 A |
| General | |
| Weight | Net weight: 0.560 kg Gross weight: 0.646 kg |
| Working temperature | Operating: -10 °C to 70 °C (14 °F to 158 °F) Storage: -25 °C to 85 °C (-13 °F to 185 °F) |
| Working humidity | < 95% (no-condensing) |
| Cooling system | Convection |
| Dimension (L x W x D) | 178 mm × 97 mm × 38 mm (7.01″ × 3.82″ × 1.50″) |
| Power supply | 100 VAC to 240 VAC |
| Power consumption | 150 W |
