描述
HIKVISION DS-KB2412T-IM(B) 4-Wire HD Door Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

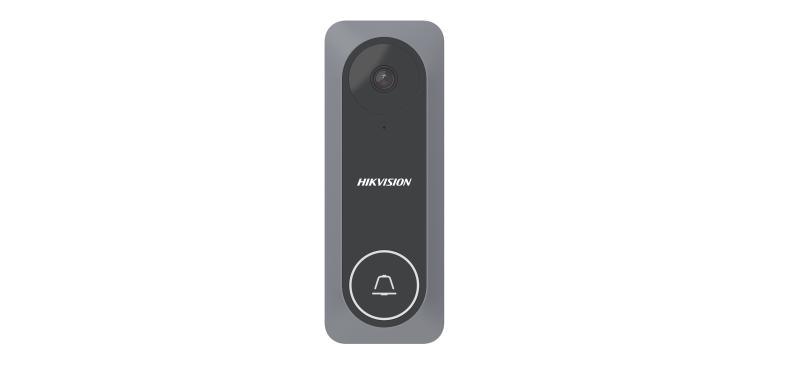

DS-KB2412T-IM(B)
4-Wire HD Door Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Video parameters
- FOVHorizontal: 130°，Vertical: 70°
- Supplement lightIR light, up to 3 m
- ResolutionStream resolution:1280 * 720@60fps
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Device interfaces
- Lock control1 relay, max 30V 1 A
- Four-Wire interface1
- General
- Button1
- Working temperature-30 °C to 60 °C
- InstallationSurface mounting
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)50.94 mm × 135.94 mm × 20 mm (2″ × 5.35″ × 0.79″)
- Indicator/
- Power consumption≤ 4 W
- MaterialPlastic
- Protective level/
- Battery/
- Application environmentIndoor
