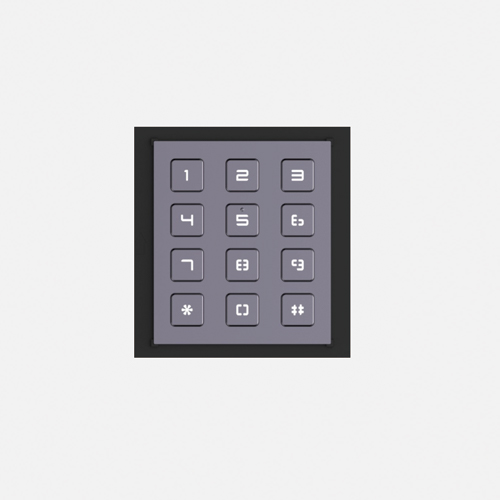

HIKVISION DS-KD-KP KD8 Series Pro Modular Door Station

KD8 Series Pro Modular Door Station

• Modular door station Keypad module, needs mouting bracket
• Input pin code to open door, call indoor station
• Backlight compensation
• Easy to and extend

System Parameters

• Operating System- Embedded Linux operation system
• ROM- /
• RAM- /
• CPU- Embedded MCU Processor

Device Interfaces

• TAMPER- Not supported.
• Exit Button- /
• RS-485- 1
• Power Interface- 1

General

• Button- 12
• Installation- Flush mounting, surface mounting
• Indicator- With package: 529 g, Without package: 265 g
• Protective Level- IP65, IK7
• Working Temperature- -40° C to +55° C(-40° F to 131° F)
• Working Humidity- 10% to 95%
• Dimensions- 98.5 mm × 100 mm × 34.2 mm (3.87″ × 3.95″ × 1.33″)
• Battery- /
• Application Environment- Outdoor
• Power Consumption- 1 W
