HIKVISION DS-KD8003Y-IME2 是海康威視模組化對講門口機，大堂可按顯示、按鍵或讀卡模組組合。香港防盜為安裝商及經銷商。框及模組要以原廠規格為準。

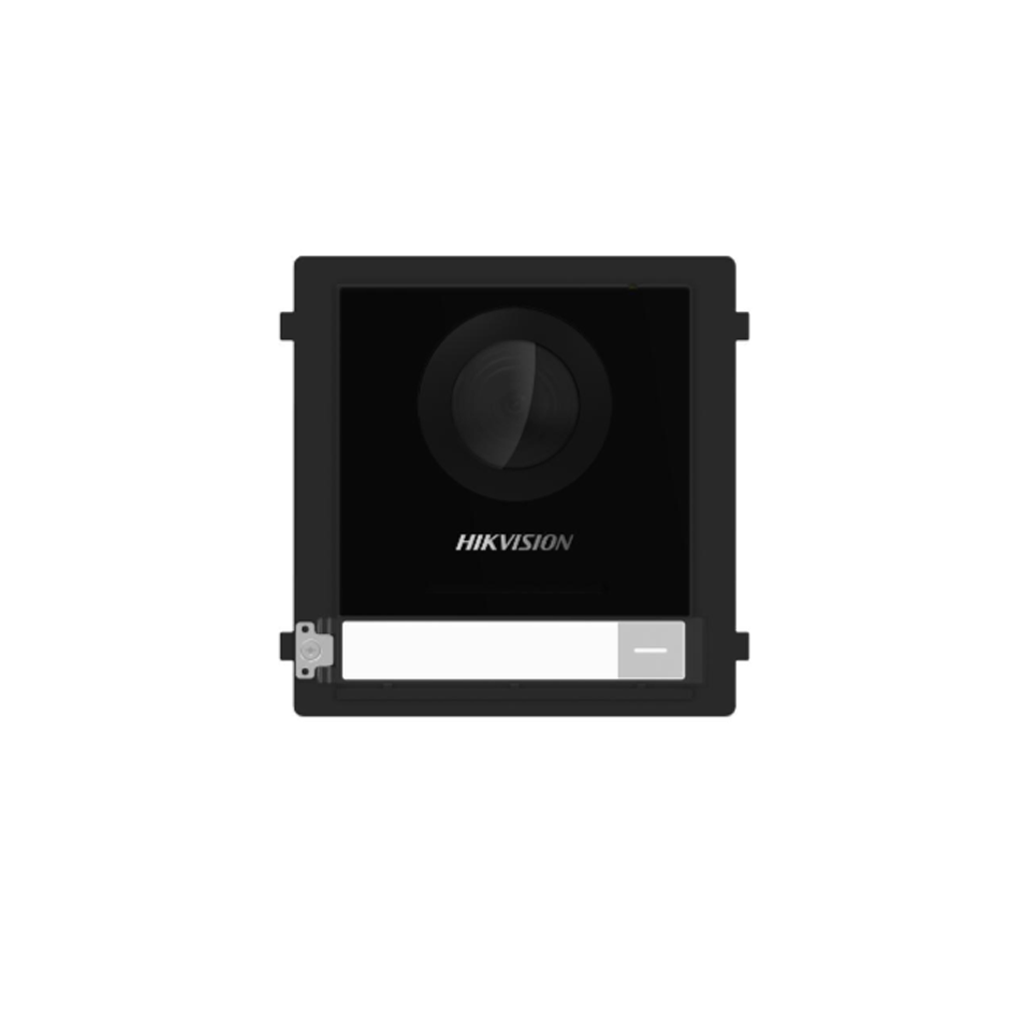

HIKVISION DS-KD8003Y-IME2
Two wire main unit
Features
2-Wire main unit of modular door station
2MP fisheye camera with IR supplement
One call Physical Button For easier calls
Two-lock control
IP65 protection level
Convenient configuration via Web remotely
Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
Specifications
| System parameters | |
| Operation system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embedded Processor |
| Video parameters | |
| Lens | 1 |
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Device interfaces | |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision’s sub module communication) |
| Lock control | 2 relays, Max. to 30 VDC, 2 A |
| Door contact input | 2 |
| Two-Wire IP interface | 1 |
| General | |
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Weight | Net weight: 0.380 kg Gross weight: 0.541 kg |
| Protective level | IP65 |
| Working temperature | -40° C to 60° C (-22° F to 140° F) |
| Working humidity | 10% to 90% |
| Dimension (W × H × D) | 100 mm × 98 mm × 42 mm |
| Power supply | Powered by KAD704Y or KAD706Y series distributor |
| Application environment | Outdoor |
| Power consumption | ≤ 4 W |
