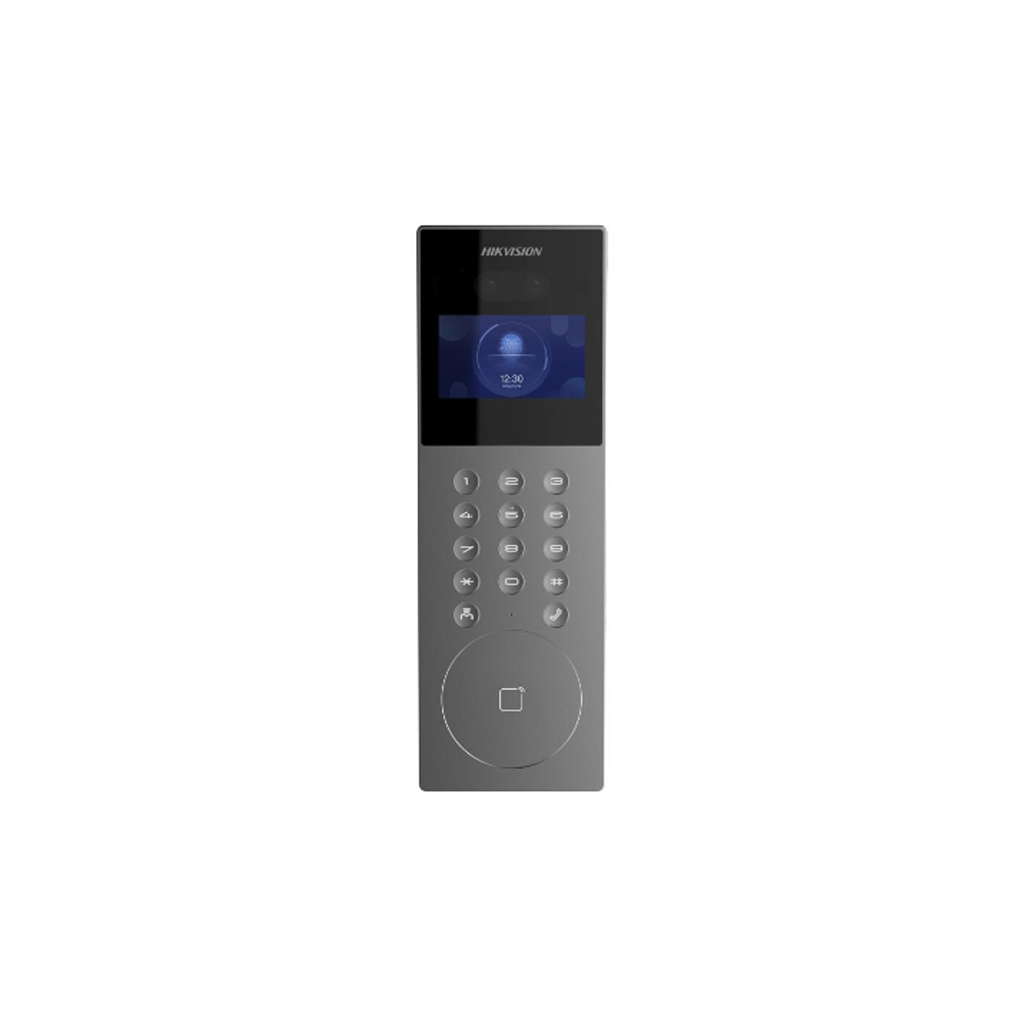

HIKVISION DS-KD9203-E6
Face Recognition Door Station with 4.3-inch Screen
Features
4.3-inch colorful LCD screen with 800 × 480 resolution
2 × 2 MP wide-angle HD lens
IP65 protection level
Built-in M1 card reading module
Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
Convenient configuration via Web remotely
Convenient unlock methods: face, cards, PIN code
Specifications
| System parameters | |
| Operation system | Linux |
| ROM | 1 GB |
| RAM | 4 GB |
| Processor | Embeded high performance processor |
| Display parameters | |
| Screen size | 4.3-inch |
| Type | Colorful LCD |
| Resolution | 800 × 480 |
| Video parameters | |
| Lens | 2 MP HD camera |
| Resolution | Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps |
| Wide dynamic range (WDR) | Digital WDR/120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 10,000 |
| Face capacity | 5000 |
| Card capacity | 50,000 |
| Network parameters | |
| Network protocol | TCP/IP, RTSP |
| Device interfaces | |
| Alarm input | 4 |
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 1 |
| RS-485 | 2 RS-485 (Half duplex, HIKVISION) |
| Lock control | 1 relays, Max. 30 VDC, 2 A |
| Door contact input | 1 |
| General | |
| Installation | Flush mounting |
| Weight | Net weight: 0.995 kg Gross weight: 1.592 kg |
| Protective level | IP65 |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 373 mm × 124 mm × 43.7 mm (14.69″ × 4.88″ × 1.72″) |
| Power supply | 12 VDC, 1.5 A |
| Application environment | Outdoor |
| Power consumption | ≤ 13 W |
