描述

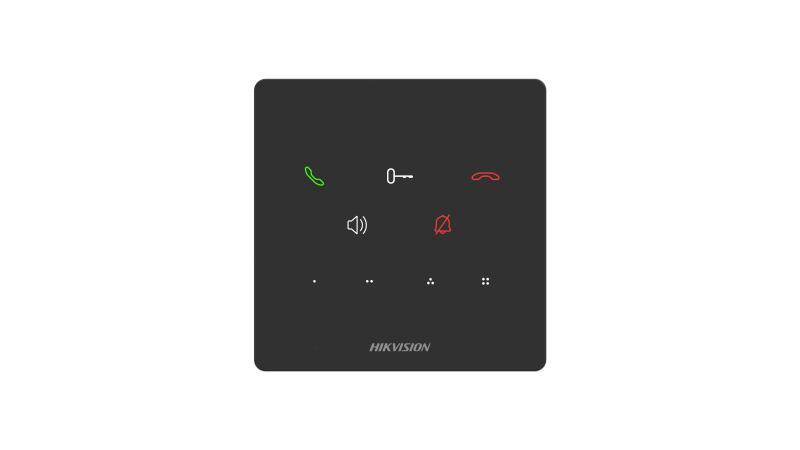

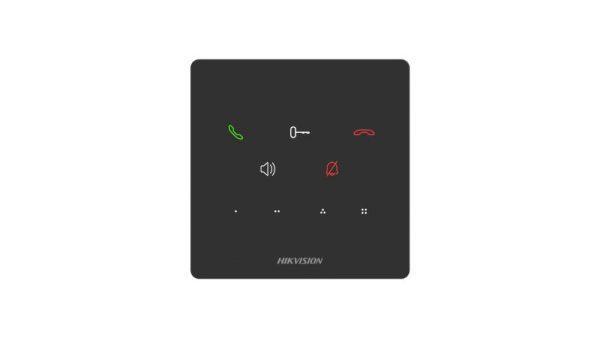

HIKVISION DS-KH6000-E1 KH6 Series IP-Based Indoor Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KH6000-E1
KH6 Series IP-Based Indoor Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operating systemLinux
- ROM8 MB
- RAM64 MB
- CPUEmbedded processor
- Display parameters
- Screen size/
- Operation method9 touch button
- Type/
- Resolution/
- Video parameters
- Lens/
- Resolution/
- FOV/
- WDR/
- Video compression standard/
- Focal length/
- Audio parameters
- Audio compression standardG.711 U, G.711 A
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Event capacity/
- Notice capacity/
- Linked indoor extensions capacity16
- Network parameters
- Communication protocolTCP/IP, SIP, RTSP
- Wi-Fi standard/
- Bluetooth version/
- 3G/4G standard/
- Zigbee/
- Device interfaces
- Alarm input4
- Network interface1 RJ-45 100 Mbps
- TAMPER/
- RS-485/
- USB/
- TF card/
- Alarm output/
- General
- Button9 touch buttons
- InstallationWall mounting, table mounting
- Indicator0
- With package: 305.4 g (0.7 lbs) Without package: 166.6 g (0.4 lbs)
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90%
- Dimensions120 mm × 120 mm × 21 mm (4.7″ × 4.7″ × 0.83″)
- Application environmentIndoor
- Power consumption≤ 4 W
- LanguageEnglish
- Power supplyIEEE802.3af, Standard PoE,12 VDC
