描述

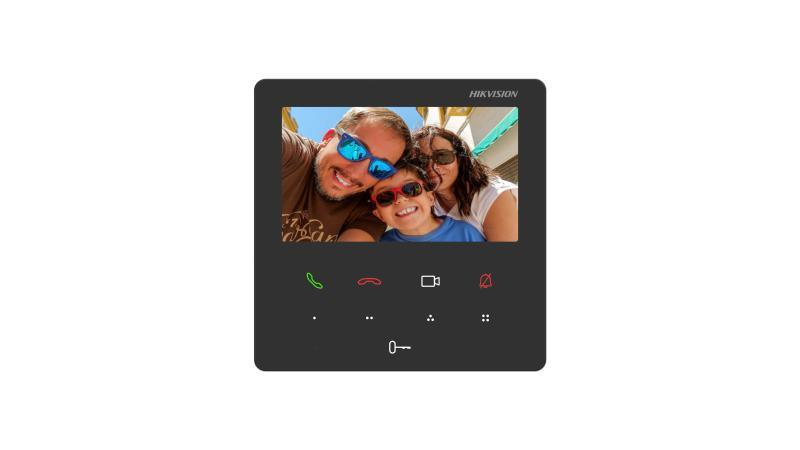

HIKVISION DS-KH6110-WE1 KH6 Series IP-Based Indoor Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KH6110-WE1
KH6 Series IP-Based Indoor Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operating systemLinux
- ROM16 MB
- RAM128 MB
- CPUEmbedded processor
- Display parameters
- Screen size4.3-inch
- Operation methodCapacitive touch screen with 9 touch buttons
- TypeColorful TFT
- Resolution480 × 272
- Video parameters
- Lens/
- Resolution/
- FOV/
- WDR/
- Video compression standard/
- Focal length/
- Audio parameters
- Audio compression standardG.711 U, G.711 A
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Event capacity200
- Notice capacity200
- Linked indoor extensions capacity16
- Network parameters
- Communication protocolTCP/IP, SIP, RTSP
- Wi-Fi standardWi-Fi 802.11 b/g/n, 2.4 GHz
- Bluetooth version/
- 3G/4G standard/
- Zigbee/
- Device interfaces
- Alarm input4
- Network interface1 RJ-45 100 Mbps
- TAMPER/
- RS-485/
- USB/
- TF card/
- Alarm output/
- General
- Button9 touch buttons
- InstallationWall mounting, table mounting
- Indicator/
- With package: 336.6 g (0.7 lbs) Without package: 197.8 g (0.4 lbs)
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90%
- Dimensions120 mm × 120 mm × 21 mm (4.7″ × 4.7″ × 0.83″)
- Application environmentIndoor
- Power consumption≤ 4 W
- LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
- Power supplyIEEE802.3af, Standard PoE,12 VDC
