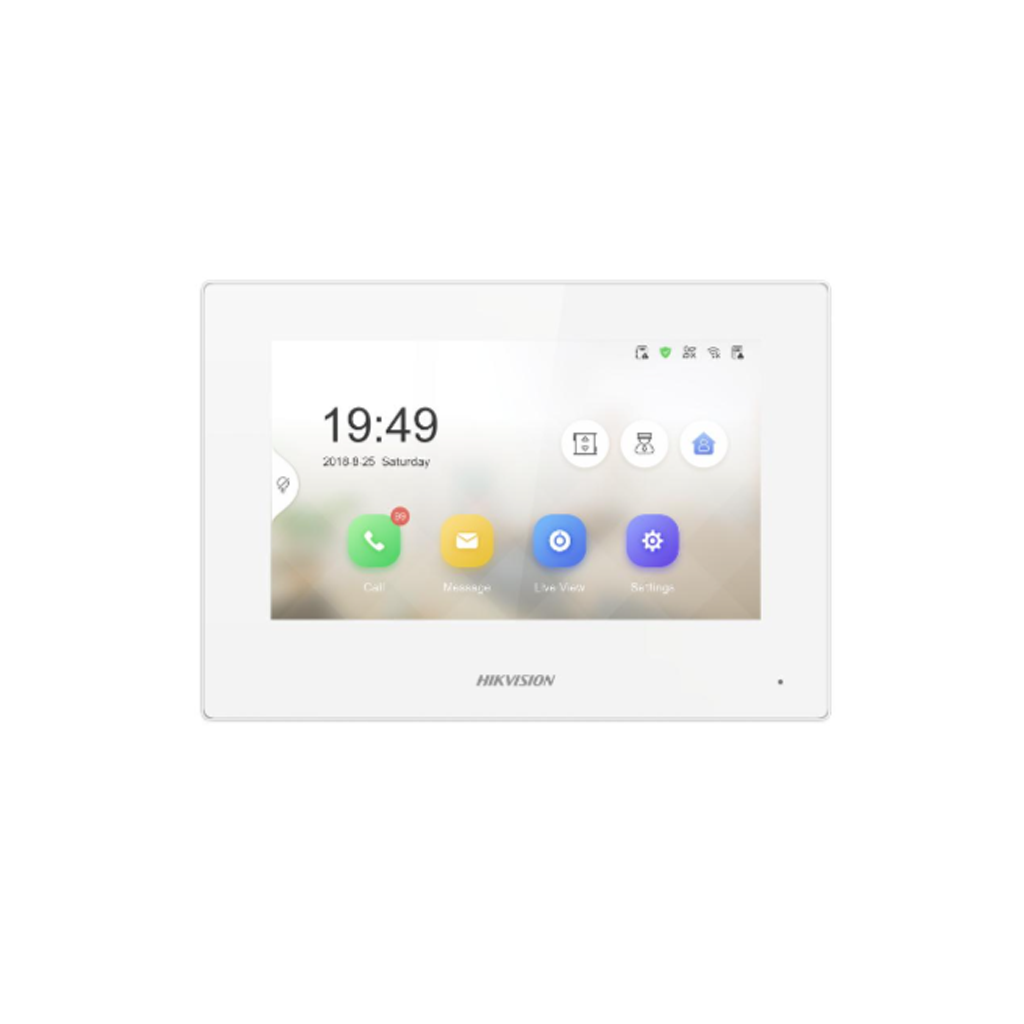

HIKVISION DS-KH6320-LE1(B)/White
Video Intercom Network Indoor Station
Features
7-inch TFT touch screen with 1024 × 600 resolution
Plug & Play
Standard PoE power supply
Live view of the door station and cameras in public areas
Support multiple languages
Specifications
System parameters | |
Operating system | Linux |
ROM | 32 MB |
RAM | 128 MB |
CPU | Embedded processor |
Display parameters | |
Screen size | 7-inch |
Operation method | Capactive touch |
Type | TFT LCD |
Resolution | 1024 × 600 |
Audio parameters | |
Audio compression standard | G.711 U, G.711 A |
Audio input | Built-in omnidirectional microphone |
Audio output | Built-in loudspeaker |
Audio compression bitrate | 64 Kbps |
Audio quality | Noise suppression and echo cancellation |
Volume adjustment | Adjustable |
Capacity | |
Event capacity | 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events |
Linked indoor extensions capacity | 16 |
Linked network camera capacity | 16 |
Linked doorphone capacity | 17 IP doorphones Max. |
Network parameters | |
Communication protocol | TCP/IP, RTSP |
Wired network | Support |
Device interfaces | |
Alarm input | 8 |
Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
Power interface | 1 (12VDC power input) |
General | |
Installation | Surface mounting, table mounting |
Working temperature | -10 °C to 50 °C (14 °F to 133 °F) |
Working humidity | 10% to 90% |
Dimensions | 200 mm × 140 mm × 23.6 mm (7.87″ ×5.51″ × 0.93″) |
Power supply | IEEE802.3af, standard PoE 12 VDC |
Application environment | Indoor |
Power consumption | Power consumption ≤ |
Weight | Without package: 330 g (0.73 lb),With package: 667g (1.47 lb) |
