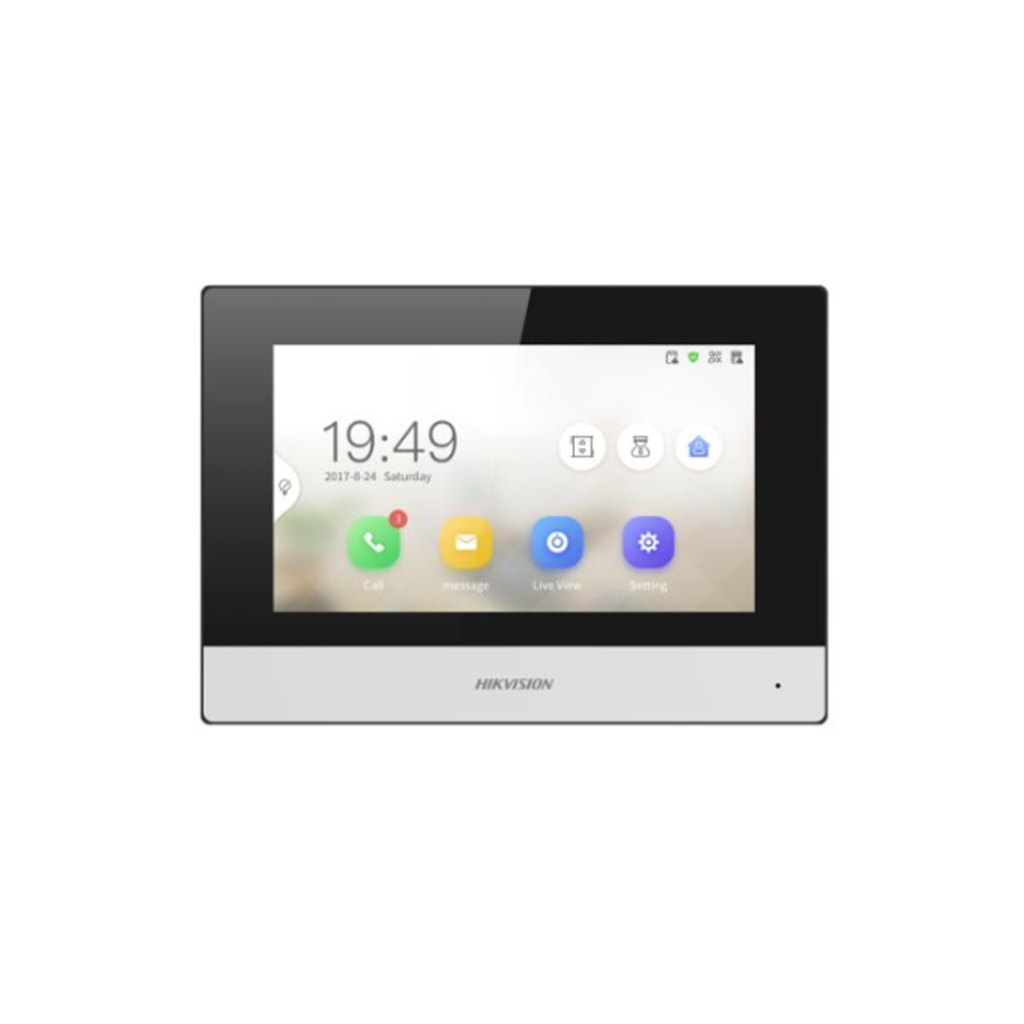

HIKVISION DS-KH6320-TDE1

Network Indoor Station

Features

 7-inch TFT touch screen with 1024 × 600 resolution
 Convenient Hik-Connect APP Mobile Control
 Receive calls, open the door and live view remotely
 Easy to use without PC
 Easy wizard for quick set up
 Configure the whole system on one touch screen
 Live view of the door station and cameras in public areas
 Support voice messages when no response from the indoor station
 Receive alarms by linkage with a alarm system and notify the center to handle in time
 Elevator access control

Specifications

System parameters
Operation system	Linux
ROM	32 MB
RAM	128 MB
Processor	Embeded high performance processor
Display parameters
Screen size	7-inch
Operation method	Capacitive touch screen
Type	Colorful TFT
Resolution	1024 × 600
Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio compression standard	G.711U, G.711A
Audio output	1 built-in loudspeaker
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
Message capacity	TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice capacity	200
Linked network camera capacity	16
Linked indoor extensions capacity	16
Linked doorphone capacity	2 analog doorphones, 15 network doorphones
Network parameters
Network protocol	TCP/IP, SIP, RTSP
Device interfaces
Network interface	1 RJ-45 10/100 Mbps self-adaptive
RS-485	1 RS-485 (Half duplex)
TF card	Support TF card, up to 128 G
