描述
HIKVISION DS-KH6350-WTE1/White IP Indoor Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

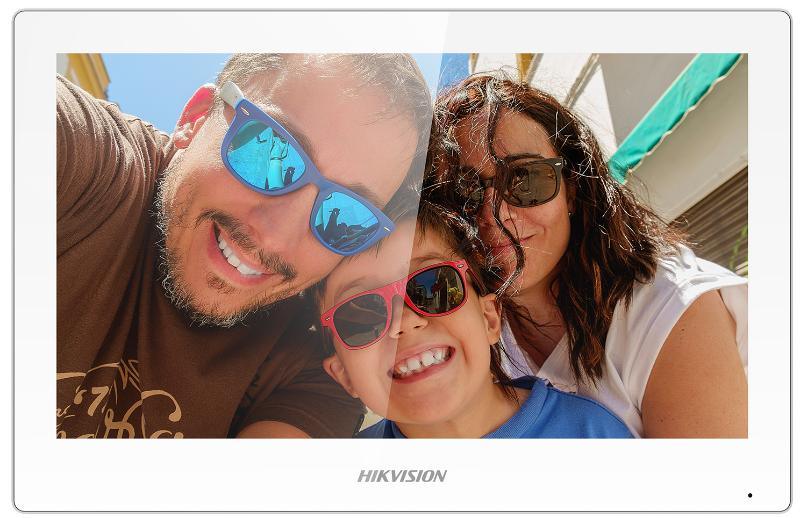

DS-KH6350-WTE1/White
IP Indoor Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM128 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful TFT
- Resolution1024 × 600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standardH.265；H.264
- Focal length/
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Message capacityTF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity200
- Linked indoor extensions capacity16
- Linked doorphone capacity17
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851 RS-485 (Half duplex)
- USB/
- TF cardSupport TF card, up to 128 G
- Alarm output2
- Lock control2 relays, Max. 30 VDC 0.3 A
- General
- Button/
- InstallationWall mounting, table mounting
- Indicator/
- Net weight: 355 g (0.8 lb) Gross weight: 683 g (1.5 lb)
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″)
- Battery/
- Application environmentIndoor
- Power consumption≤ 5 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Power supply12 VDC, 1 A,IEEE802.3af, Standard PoE
