描述

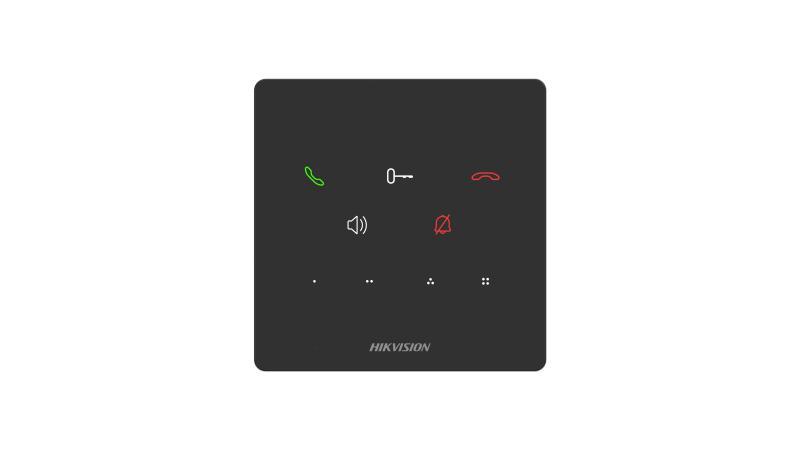

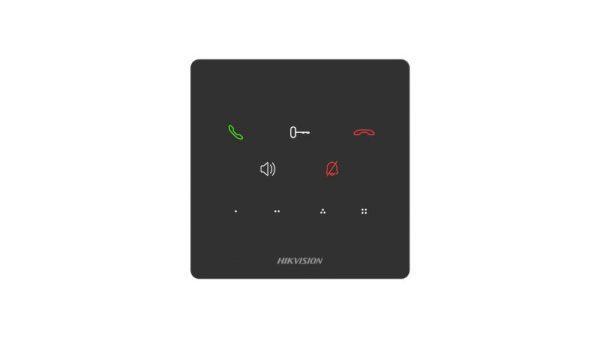

HIKVISION DS-KH7000EY-E2 Audio 2-wire HD Indoor Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KH7000EY-E2
Audio 2-wire HD Indoor Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemEmbedded FreeRTOS operation system
- ProcessorEmbedded processor
- Display parameters
- Operation methodTouch button
- Type/
- Video parameters
- Video compression standard/
- Lens/
- FOV/
- Wide dynamic range (WDR)/
- Resolution/
- Focal length/
- Audio parameters
- Audio compression standardG726
- Audio input1 Built-in omnidirectional microphone
- Audio output1 Buit-in loudspeaker
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Linked indoor extensions capacity3
- Network parameters
- Wired network10/100 Mbps self-adaptive through 2-wire interface
- Wi-Fi/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input1
- TAMPER/
- RS-485/
- USB/
- TF card/
- Alarm output/
- Power supply inputPowered by DS-KAD7060EY/DS-KA7061EY or 12V
- Two-Wire IP interface2, 1 for input 1 for output
- General
- InstallationSurface mounting
- Indicator/
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)119.99 mm × 119.99 mm × 21 mm (4.72″ × 4.72″ × 0.83″)
- Battery/
- Power supplyPowered by DS-KAD7060EY/DS-KA7061EY or 12V DC
- Application environmentIndoor
- Power consumption≤ 4W（stand by ≤ 1W）
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
