描述

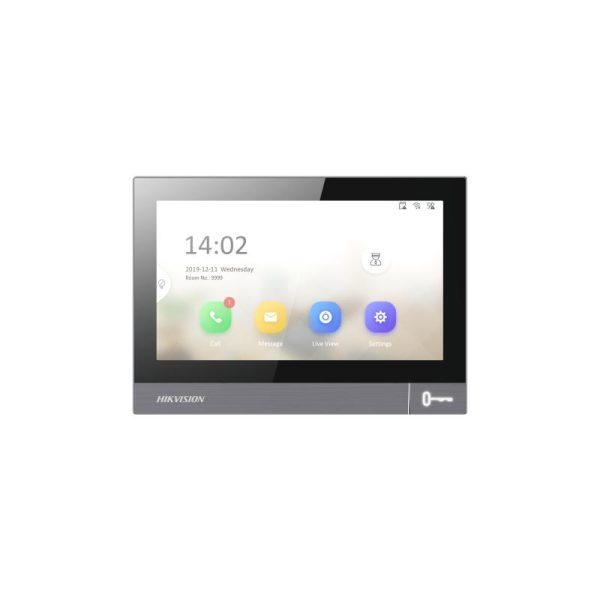

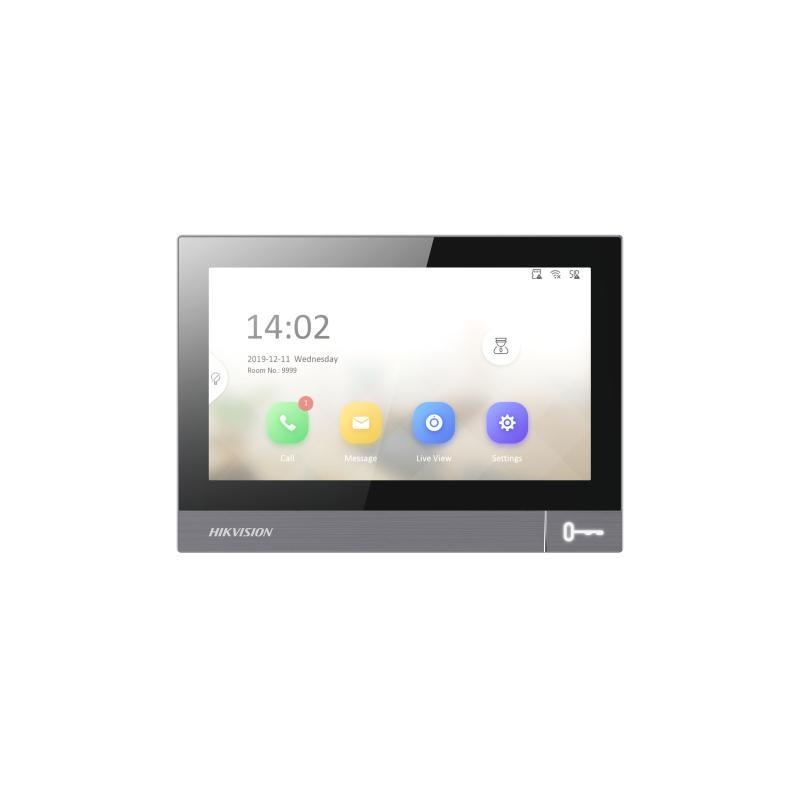

HIKVISION DS-KH8381-WTE1/Flush 8 Series Indoor station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KH8381-WTE1/Flush
8 Series Indoor station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- ProcessorEmbedded high performance processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1024*600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standardH.265；H.264
- Focal length/
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate16、32、64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Message capacityTF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity200
- Linked network camera capacity16
- Linked indoor extensions capacity16
- Linked doorphone capacity/
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-FiWiFi 802.11b/g/n
- Wireless network1 RJ-45 10/100Mbps self-adaptive
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851
- USB/
- TF cardSupport TF card, up to 128 G
- Alarm output/
- Lock control4 relays, Max. 30 VDC 1A
- Power supply outputMax. 12 VDC 0.5 A
- Debugging port1
- Relay4
- General
- Button1 physical button(s)
- InstallationFlush mounting, surface mounting, table mounting
- Indicator/
- Without package: 412.2 g (0.909 lb)
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)180.4 mm × 128.4 mm × 21.8 mm (7.10″ × 5.06″ × 0.86″)
- Battery/
- Power supplyIEEE802.3at, Standard PoE,12 VDC, 1.5 A
- Application environmentIndoor
- Power consumption≤ 12 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- MaterialDie-cast integrated aluminum alloy casing
