HIKVISION DS-KH9510-WTE1(B)

描述

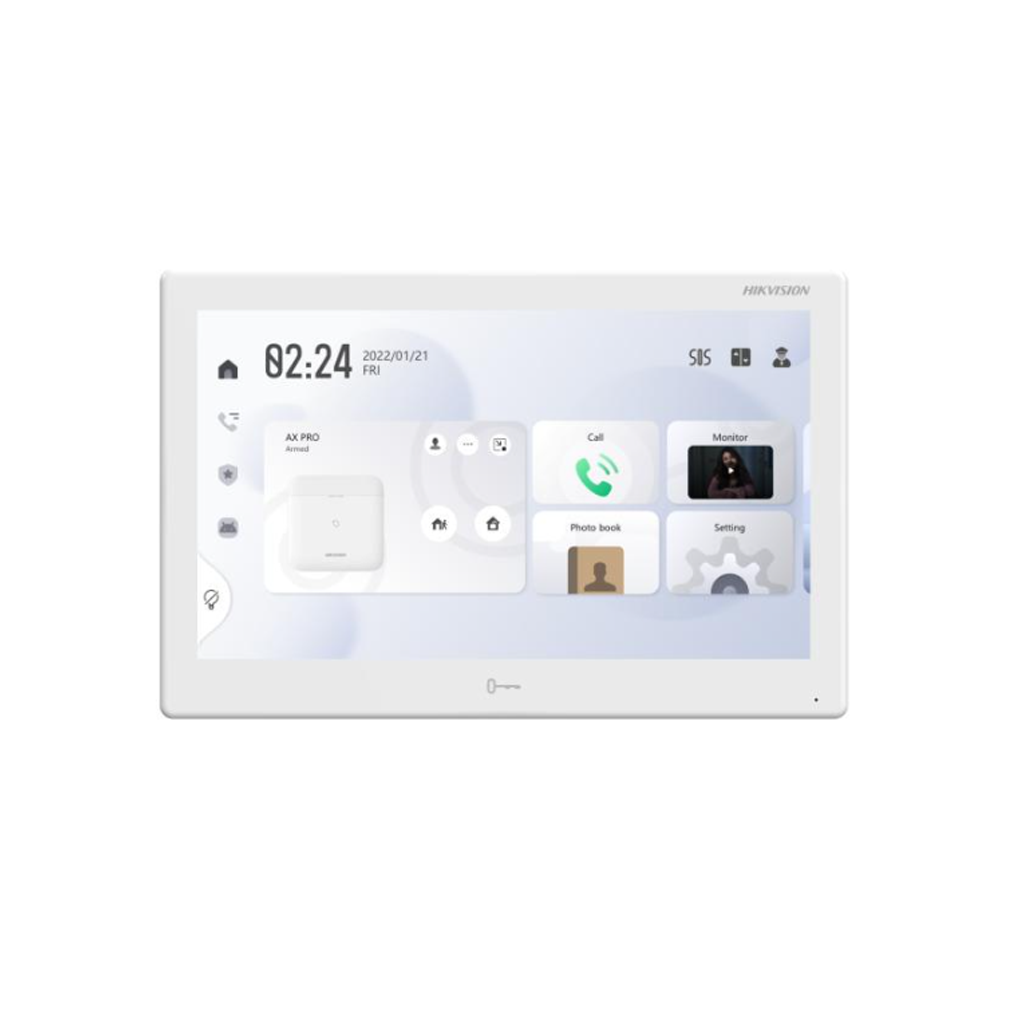

HIKVISION DS-KH9510-WTE1(B)

Video Intercom Network Indoor Station



Features

 10.1-inch colorful touch screen with 1024 × 600 resolution
 Built-in Android System
 Supports Android APP installation
 Support for three-party software integration
 Built-in Hik-Connect APP
 For all-in-one management of Hikvision’s devices on tablet



Specifications

System parameters
Operation systemAndroid 10.1
ROM8 GB
RAM2 GB
ProcessorEmbeded high performance processor
Display parameters
Screen size10.1-inch
Operation methodCapacitive touch screen
TypeColorful IPS
Resolution1024 × 600
Audio parameters
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711U, G.711A
Audio output1 built-in loudspeaker
Audio compression bitrate64 Kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable
Capacity
Message capacity200 captured pictures, 200 alarm records
Notice capacity200
Linked indoor extensions
capacity
16
Linked network camera capacity16
Linked doorphone capacity17
Network parameters
Network protocolTCP/IP, SIP, RTSP
Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Device interfaces
Alarm input8
Network interface1 RJ-45 10/100 Mbps self-adaptive
RS-4851 RS-485 (Half duplex)
TF cardSupport TF card, up to 128 G
Alarm output1
