描述
HIKVISION DS-KIS612-P IP Video Intercom Kit 是海康威視視像對講套裝，通常含門口機及分機。香港防盜為安裝商及經銷商。套裝內容以原廠規格為準。

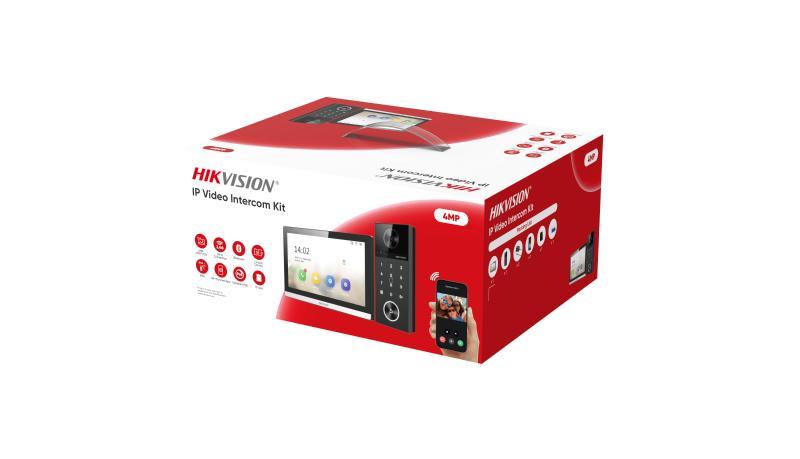

DS-KIS612-P
IP Video Intercom Kit
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Door station/System parameters
- Operation systemLINUX
- ProcessorEmbeded high performance processor
- Memory/
- RAM512 MB
- ROM4 GB
- Door station/Video parameters
- Supplement lightIR light, up to 3 m
- ResolutionMain stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
- Lens1
- FOVHorizontal: 150°; Vertical: 75°
- Video compression standardH.264; H.265; MJPEG
- Door station/Audio parameters
- Volume adjustmentAdjustable
- Audio Performance50cm 80dB (Maximum: 50cm 83dB)
- Door station/Capacity parameters
- User capacity2000
- Card capacity6000
- Door station/Network parameters
- Network protocolTCP/IP, SIP, RSTP, IPV6, ONVIF
- Wi-Fi2.4GHz
- BluetoothSupported
- Wi-Fi ProtocolIEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
- Wi-Fi TypeWiFi 6
- Door station/Authentication parameters
- Card TypeM1 Card
- Card reading frequency13.56 MHz
- Authentication modeCard;Bluetooth;PIN Code;Hik-Connect;Indoor Station
- Card Reading DistanceM1card:2to2.5cm
- Door station/Application
- Mobile APPHik-Connect
- Motion DetectionSupport
- PlaybackSupport
- Call ElevatorSupport
- Smart FeaturesSound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
- Door station/Device interfaces
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- Exit button1
- Lock control2 relay, Max. 30 VDC 2 A
- RS-4851
- Door contact input1
- Alarm input4(includeExit button and Door contact input)
- Alarm output0
- TAMPER1
- TF cardSupport TF card, up to 128 G
- Supported TF FormatFAT32;exFAT
- Door station/General
- Button1 physical button(s)
- Indicator3
- Power consumption＜ 10 W
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Application environmentOutdoor
- Dimension (W × H × D)164 mm × 69 mm × 24.7 mm (6.46″ × 2.72″ × 0.97″)
- Protective levelIP65
- Installation Surface mounting
- Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
- Material Front Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass
- Power supply12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
- Power Supply OutputMax. 12 VDC, 1 A
- Indoor station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio compression bitrate16~64Kps
- Indoor station/Network parameters
- Wired network 1 RJ-45, 10/100 Mbps self-adaptive
- Wireless network2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Network protocolTCP/IP, SIP, RTSP
- Indoor station/Device interfaces
- RS-4851 RS-485 (Half duplex)
- Alarm input8-ch alarm inputs
- Relay output2
- TF cardSupport TF card, up to 128 G
- Indoor station/General
- Power consumption≤ 5 W
- Power supply12 VDC, 1 A,IEEE802.3af, Standard PoE
- Working temperature -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (L x W x H)174.99 mm × 113.49 mm × 21 mm (6.89″ × 4.47″ × 0.83″)
