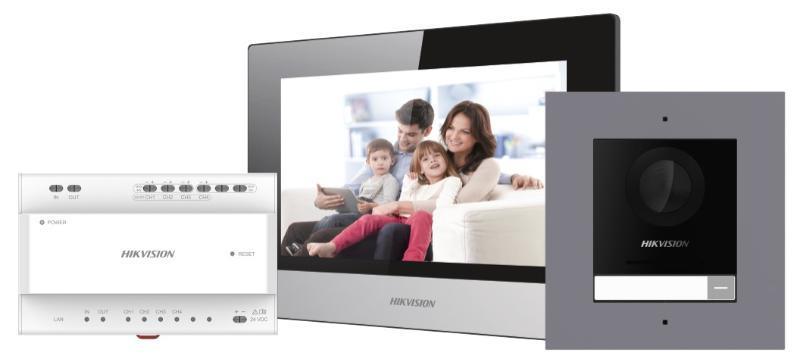

HIKVISION DS-KIS702Y Villa Two Wire Kit 是海康威視視像對講套裝，通常含門口機及分機。香港防盜為安裝商及經銷商。套裝內容以原廠規格為準。
DS-KIS702Y
Villa Two Wire Kit
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Door station/System parameters
- ProcessorEmbedded microcontroller
- Operation systemEmbedded Linux operation system
- Operation modeOne touch key
- Door station/Video parameters
- Camera2MP super definition camera
- ResolutionMain stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480
- Night visionSupport low light and IR light supplement mode
- Backlight compensationSupport
- Digital noise reductionSupport
- WDRTrue WDR
- Field of viewHorizontal 146°, vertical 82°
- Video Compression StandardH.264,H.265,MJPEG
- StreamMain stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1
- Motion detectionSupport
- Flash-avoid frequency50 Hz, 60 Hz
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputLoudspeaker, 20 cm sound effect > 80 db
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Audio intercomFull-duplex two-way audio intercom
- Door station/Capacity parameters
- Sub door station capacity16
- Door station/Network parameters
- Network ProtocolTCP/IP, RTSP, IPV6, ONVIF
- Door station/Device interfaces
- Debugging port1
- RS-485 1 (1 for Hikvision’s sub module communication)
- Alarm input 4 (2 exit butttons and 2 door contacts by default)
- Lock control2 (2 relay, max to 30 VDC, 2 A)
- TAMPER switch1
- Power interface12 VDC power output (12 V, 500 mA Max.)
- Door station/General
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity10% to 90%
- InstallationSurface mounting
- Protection level IP 65
- Button1
- Power inputPowered by KAD704Y or KAD706Y series distribution
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch TFT LCD
- Display resolution1024 × 600
- Operation methodCapacitive touch
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Volume Local or software control
- Audio compression standardG.711 U, G.711 A
- Audio compression Rate64 Kbps
- Indoor station/Network parameters
- Wired network Two-wire network
- Wireless networkWi-Fi 802.11b/g/n
- ProtocolTCP/IP, SIP, RTSP
- Indoor station/Device interfaces
- Network interfaceTwo-wire interface
- RS-4851
- Alarm input8 zones alarm input
- Relay output2
- TF cardSupport, Max. 128 GB
- Indoor station/General
- Power supplyPowered by KAD704Y or KAD706Y series distributor
- Power consumption≤ 4 W
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90%
- Dimensions (W × H × D)200 mm × 140 mm × 23.6 mm (7.87″ × 5.51″ × 0.93″)
- Video Audio Distributor/Interfaces
- Network interface1 RJ45
- Two-wire interface6 (2 for cascading and 4 for devices)
- Signal indicator 6
- Power indicator1
- Reset1
- Video Audio Distributor/General
- Power supply24 VDC
- Power consumptionCH1 to CH3＜4 W, CH4＜8 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
