描述

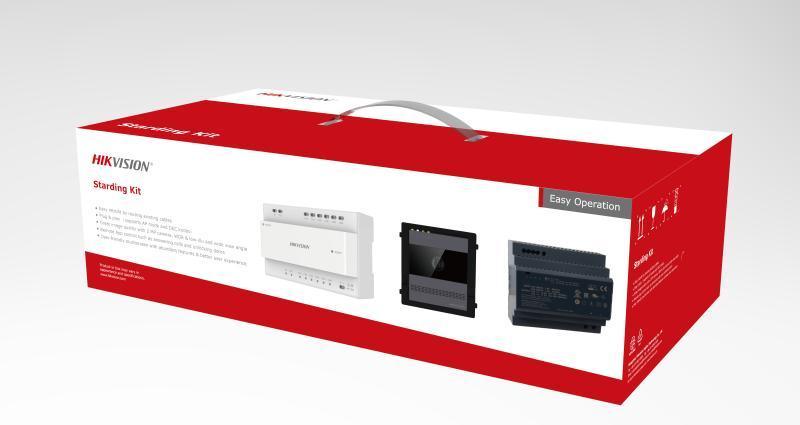

HIKVISION DS-KIS711 2-wire HD starting kit 是海康威視視像對講套裝，通常含門口機及分機。香港防盜為安裝商及經銷商。套裝內容以原廠規格為準。
DS-KIS711
2-wire HD starting kit
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Door station/System parameters
- ProcessorEmbedded Processor
- ROM4 GB
- RAM256 MB
- Operation systemEmbedded Linux operation system
- Door station/Screen parameters
- Screen sizeNA
- ResolutionNA
- TypeNA
- Operation methodNA
- Door station/Video parameters
- Supplement lightSupplement light Low illumination, IR supplement lights
- Resolution2MP
- Lens1
- Wide dynamic range (WDR)Support
- FOVHorizontal: 133°, Vertical: 82°
- Video compression standardH.264
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Volume adjustmentAdjustable
- Audio compression standardG.711 U, G.711 A
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Door station/Capacity parameters
- Linked indoor station capacityMax.99
- Sub door station capacity16
- Door station/Network parameters
- Wireless network10/100 Mbps self-adaptive through 2-wire interface
- Wi-FiOnly AP mode for configuration
- Door station/Device interfaces
- RS-4852 (RS485 out for Hikvision’s sub module communication, RS485 for reservation)
- Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Exit button1
- Door contact input1
- Alarm input2（supports Exit button or Door contact input）
- Power supply input12VDC input
- TAMPER1
- Debugging port1
- Two-Wire1
- DIP Switch6 decimal DIP switch
- Door station/General
- Button0-2（Flexible adjustment）
- Indicator4 LED lights(Opening door、Calling、Intercom、In use）
- Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
- Power consumption≤ 6 W
- Working temperature-40° C to 60° C (-22° F to 140° F)
- Working humidity10% to 90%
- Application environmentOutdoor
- Dimension (W × H × D)99.5 mm × 98.5 mm × 35 mm (3.92″ × 3.88″ × 1.37″)
- InstallationSurface mounting & flush mounting
- Protective levelIP65 IK08
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
- Video Audio Distributor/Interfaces
- Power interface48VDC
- Two-wire interface8(“IN””OUT” for casacading, CH1-CH6 for Door station and Indoor station)
- Video Audio Distributor/General
- Power supply48VDC
- Power consumptionCH1 to CH2＜15 W；CH3+CH4+CH5+CH6＜110 W
- Working temperature-10 °C to 5 °C (14 °F to 131 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)143.7 mm × 92.4 mm × 65.9 mm (5.66″ × 3.64″ × 2.59″)
- InstallationDIN rail installation
- Indicators8 Signal indicators; 1 Power indicator
