描述

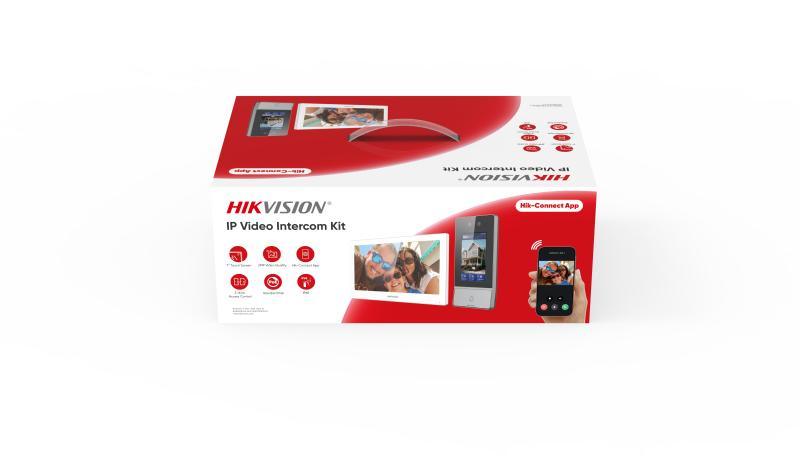

HIKVISION DS-KIS902-S IP Video Intercom Kit 是海康威視視像對講套裝，通常含門口機及分機。香港防盜為安裝商及經銷商。套裝內容以原廠規格為準。
DS-KIS902-S
IP Video Intercom Kit
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Door station/System parameters
- Operation systemEmbedded Linux operation system
- Flash4 GB
- RAM1 GB
- Door station/Screen parameters
- Screen size4.3-inch
- Resolution800 × 480
- TypeIPS
- Operation methodNon-touch screen
- Brightness425 cd/m²
- Door station/Video parameters
- Supplement lightIR light, up to 3 m
- ResolutionMain stream: 1920 × 1080p, 1280 x 720p Sub stream: 1280 x 720p，640 × 480p
- Lens2 × 2 MP
- Wide dynamic range (WDR)Support 120 dB
- FOVHorizontal: 88°, Vertical: 44°
- Video Compression StandardH.264, H.265, MJPEG
- Motion detectionSupport
- Door station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 Built-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Audio compression standardG711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
- Audio compression Rate64 Kbps
- Door station/Capacity parameters
- Face capacity10000
- User capacity20000
- Card capacity100000
- Door station/Network parameters
- Network protocolTCP/IP, RSTP
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- BluetoothReserved
- Door station/Authentication parameters
- Card reading frequency13.56 MHz
- Face recognition distance0.3 to 2 m
- Face recognition accuracy rate≥ 99%
- Face recognition duration＜ 0.2 s per person
- Door station/Device interfaces
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- RS-485 1
- Alarm input4 (2 exit butttons and 2 door contacts by default)
- Lock control2 relays, Max. 30 VDC 2 A
- Exit button1
- TAMPER switch1
- Door contact input1
- Door station/General
- Button1 physical button(s)
- Power consumption≤ 6 W
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension182 mm × 85 mm × 26 mm (7.16″ × 3.34″ × 1.01″)
- InstallationSurface mounting
- Protection level IP65, IK08
- Indicator/
- Application environmentOutdoor
- Power supplyIEEE802.3af, standard PoE 12 VDC, 1.5 A
- Net weight: 0.405 kg; Gross weight: 0.752 kg
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch colorful TFT screen
- Display resolution1024 × 600
- Operation methodCapacitive touch screen
- Indoor station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U, G.711 A
- Audio compression Rate64 Kbps
- Volume adjustmentAdjustable
- Indoor station/Capacity parameters
- Notice capacity200
- Linked indoor extensions capacity16
- Indoor station/Network parameters
- ProtocolTCP/IP, SIP, RTSP
- Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Indoor station/Device interfaces
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- RS-4851
- Alarm input8-ch alarm inputs
- Alarm output2
- TF cardMax to 128 G
- Indoor station/General
- Power consumption≤ 5 W
- Power supply12 VDC,IEEE802.3af, Standard PoE
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90%
- Dimension (L x W x H)175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″)
- InstallationWall mounting, table mounting
- Application environmentIndoor
- Net weight: 355 g (0.8 lb) Gross weight: 683 g (1.5 lb)
