HIKVISION DS-KP6000-HE1 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

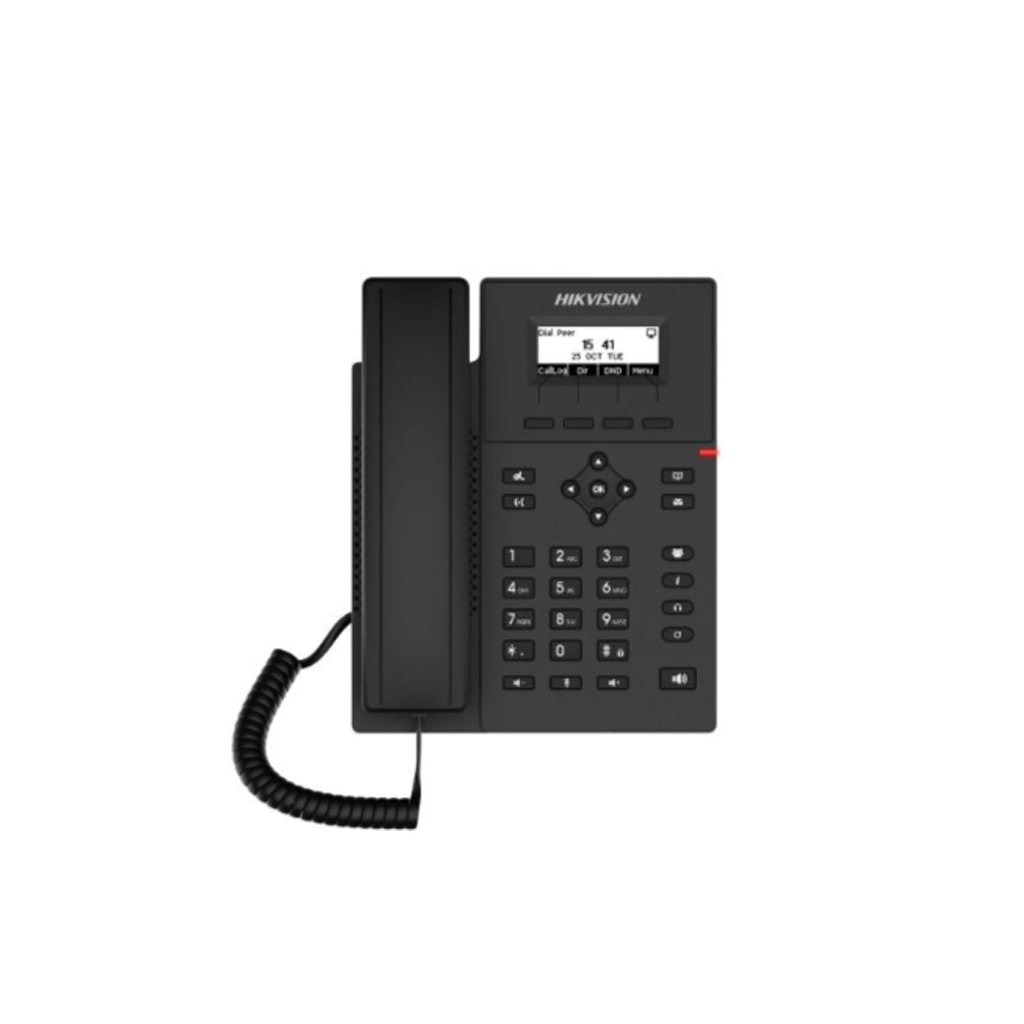

HIKVISION DS-KP6000-HE1
2.3-inch Dot-matrix Screen SIP Phone
Features
2.3-inch 128×48 pixel dot-matrix display
4 SIP Lines; 33 physical keys
Support audio codec G.722 and Opus, HD audio on speakerphone and handset
Dual 10/100 Mbps network ports, integrated PoE
Two installation methods of desktop stand and wall mountable
Specifications
| System parameters | |
| Operating system | Embedded Linux operation system |
| ROM | 16 MB |
| RAM | 64 MB |
| Display parameters | |
| Screen size | 2.3-inch |
| Operation method | Physical keys |
| Type | Dot-matrix display screen |
| Resolution | 128×48 |
| Audio parameters | |
| Audio compression standard | Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC Wideband Codec: G.722, Opus |
| Audio input | HD voice microphone; HAC handset |
| Audio output | HD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response) |
| Audio quality | Full-duplex Acoustic Echo Canceller (AEC) / Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC) |
| Volume adjustment | Adjustable |
| Capacity | |
| Communication Lines | 4 SIP Lines |
| Contact capacity | Local phonebook (1000 entries) Remote phonebook (XML/LDAP, 1000 entries) |
| Call log capacity | In/Out/Missed, 600 entries |
| Network parameters | |
| Communication protocol | SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 LLDP PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069 AES128 & AES256 |
| Wired network | 10/100 Mbps self-adaptive, dual bridged port for PC bypass |
| Device interfaces | |
| Network interface | 2 RJ-45 10/100 Mbps self-adaptive: Network x1, PC x1 (Bridged to Network) |
| Power supply input | DC power input |
| Communication interface | 2 RJ-9 ：handset x1, headset x1 |
| General | |
| Button | 33 physical keys, including: 4 Soft-keys; 9 function keys (Hold/Transfer/Voice message/Conference/Phonebook /MWI/Headset/Redial/Hands-free) ; 4 Navigation keys; 1 OK key; 12 Standard Phone Digits keys; 3 Volume Control keys (Up/Down/Mute (Microphone)) |
| Installation | Desktop stand Wall mounting (optional) |
| Indicator | Red: calling and message waiting |
| Working temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimensions | Desktop Stand (45°): 169×203.6×172.7 mm ; Desktop Stand (50°): 169x194x181 mm ; Wall mountable: 169×113.4×207.6 mm |
| Power supply | IEEE802.3af, Standard PoE,5 VDC, 0.6 A |
| Application environment | Indoor |
| Power consumption | Power Consumption(Adapter): 0.8~1.29W Power Consumption(PoE): 1.25~1.86W |
