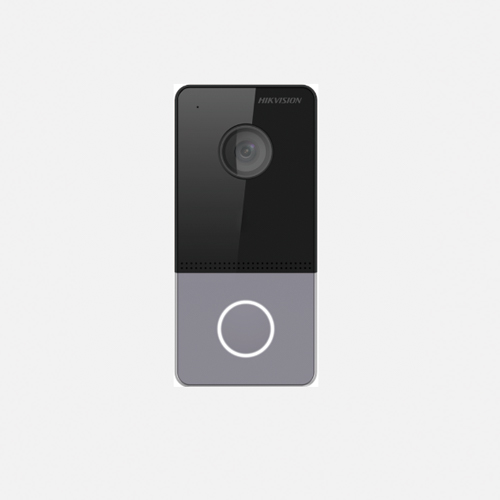

HIKVISION DS-KV6113 Plastic Villa Door Station without card read & 485 & wifi &indicators

分類: 標籤:

描述

HIKVISION DS-KV6113 Plastic Villa Door Station without card read & 485 & wifi &indicators

Plastic Villa Door Station with card read & 485 &indicators

  • Support Wifi (Only available in DS-KV6113-WPE1 model), convenient setting up and no wiring required
  • Support web configuration
  • Nice industry design, IP65, 2 indicator integrated
  • Internal Mifare card reader, 1-ch Indoor station access control
  • Noise suppression and echo cancellation
  • 2MP HD Camera with IR supplement
  • Standard PoE/ 12 VDC

Video Parameters

  • Supplement Light- IR supplement
  • Lens- 1
  • FOV- Horizontal: 129° Vertical: 75°
  • Simultaneous Live View- Up to 3 channels
  • Pixel- Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576

Audio Parameters

  • Audio Quality- Noise suppression and echo cancellation

Network Parameters

  • Communication Protocol- TCP/IP, RTSP
  • Wired Network- 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi- Support
  • Bluetooth- Not supported.
  • Received Frequency- 2.4 to 2.4835GHz
  • Transmitted Frequency- 2.4 to 2.4835 GHz
  • Bandwidth- 20 to 40 MHz
  • Frequency Power- 802.11b:16dBm +/- 1.5dBm, 802.11g:15dBm +/- 1.5dBm, 802.11n(ht20):14dBm +/- 1.5dBm, 802.11n(ht40):12dBm +/- 1.5dBm

Device Interfaces

  • Network Interface- 1
  • Exit Button- 1
  • Lock Control- 1
  • Door Contact Input- 1
  • Power Interface- 1

General

  • Button- 1
  • Installation- Surface mounting
  • Working Temperature- -40° C to +55° C(-40° F to 131° F)
  • Working Humidity- 10% to 95%
  • Indicator- 2, 265g
  • Protective Level- IP65
  • Power Supply Method- IEEE802.3af, standard PoE, 12 VDC
  • Dimensions- 138 mm × 65 mm × 27 mm
  • Battery- /
  • Application Environment- Outdoor
  • Power Consumption-< 10 W
