描述

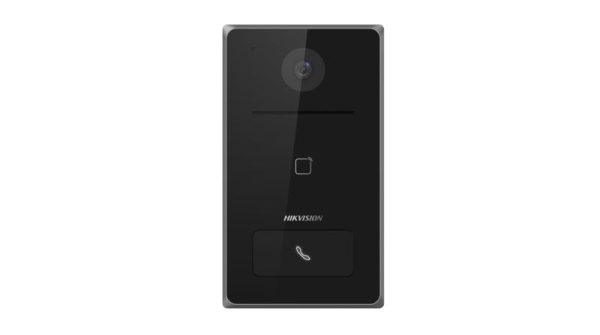

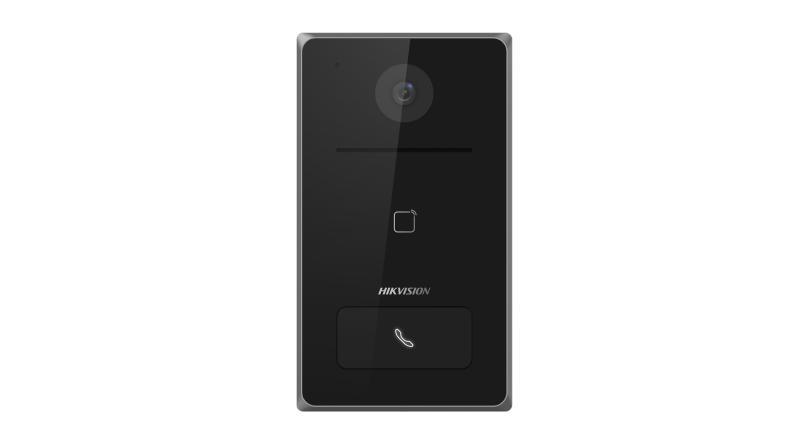

HIKVISION DS-KV6133-ME1 Villa door station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KV6133-ME1
Villa door station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- ResolutionMain stream: 1920 × 1080p，1280 × 720p Sub stream: 1280 × 720p，640 x 480p
- FOVHorizontal:129°,Vertical: 75°
- Wide dynamic range (WDR)Support 120 dB
- Supplement lightIR light, up to 2.5 m
- Video compression standardH.264; H.265; MJPEG
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate16/32/64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Face capacity/
- Card capacity10000
- Network parameters
- Network protocolTCP/IP, RSTP, IPV6, ONVIF
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Device interfaces
- Alarm input4
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button1
- RS-4851
- USB/
- Wiegand/
- TF card1(Reserved)
- Alarm output1
- Lock control1 relay, Max. 30 VDC 2 A
- Door contact input1
- Audio output1 external loudspeaker(Reserved)
- General
- Button1 physical button
- InstallationSurface mounting, Flush mounting
- Indicator2
- Net weight: 0.190 kg Gross weight: 0.414 kg
- Protective levelIP65
- Working temperature-40 °C to 53 °C (-40 °F to 127.4 °F)
- Working humidity10% to 95% (no-condensing)
- Dimension (W × H × D)181.6 mm × 103.6 mm × 29.5 mm (7.1″ × 4.0″ × 1.1″)
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
- Power supply12 VDC, 1.5 A,IEEE802.3af, Standard PoE
