描述

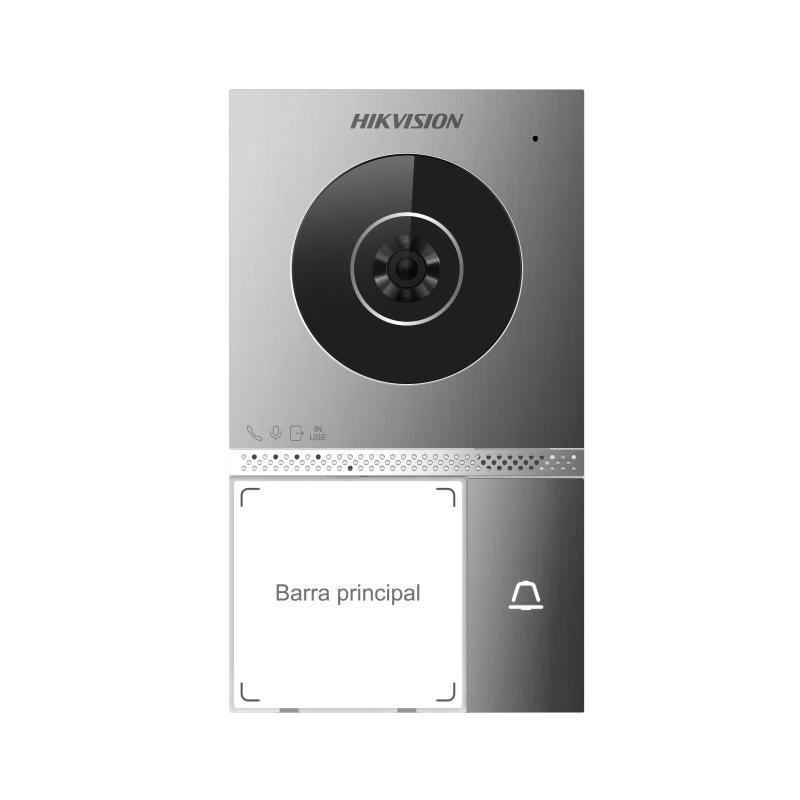

HIKVISION DS-KV7413EY-IME2 2-wire HD villa door station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KV7413EY-IME2
2-wire HD villa door station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operating systemEmbedded Linux operation system
- ROM4 GB
- RAM256 MB
- CPUEmbedded Processor
- Display parameters
- Screen sizeNA
- Operation methodNA
- TypeNA
- ResolutionNA
- Video parameters
- Supplement lightLow illumination, IR supplement lights
- Video standardH.264
- Lens1
- FOVHorizontal: 135°, Vertical: 85°
- WDRSupport
- Resolution2 MP
- Audio parameters
- Audio compression standardG.711 U, G.726
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker (More than 80 dB within 30 cm)
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Linked indoor station capacityMax. 4 flats, up to 16 indoor stations
- Sub door station capacity16
- Network parameters
- Wired network10/100 Mbps self-adaptive through 2-wire interface
- Wi-FiOnly AP mode for configuration
- BluetoothNA
- 3G/4GNA
- Device interfaces
- Alarm input2（supports Exit button or Door contact input）
- Network interfaceNA
- TAMPER1
- Exit button1
- Door contact input1
- RS-4851
- WiegandNA
- TF cardNA
- Alarm outputNA
- Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Power interface48V，Powered by distributor DS-KAD7060EY or 12VDC
- Two-wire IP interface1
- General
- Button1-4（Call button）
- InstallationSurface mounting
- Indicator4 LED lights(Opening door、Calling、Intercom、In use）
- NA
- Protective levelIP65 IK08
- Working temperature-40° C to 60° C (-22° F to 140° F)
- Working humidity10% to 90%
- Dimensions165mm × 95 mm × 25 mm(6.5″ × 3.7″ × 0.98″)
- Battery/
- Application environmentOutdoor
- Power consumption≤ 6 W
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
