描述
HIKVISION DS-KV8113-WME1(C)/Flush 1 Button Metal Villa Door Station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。

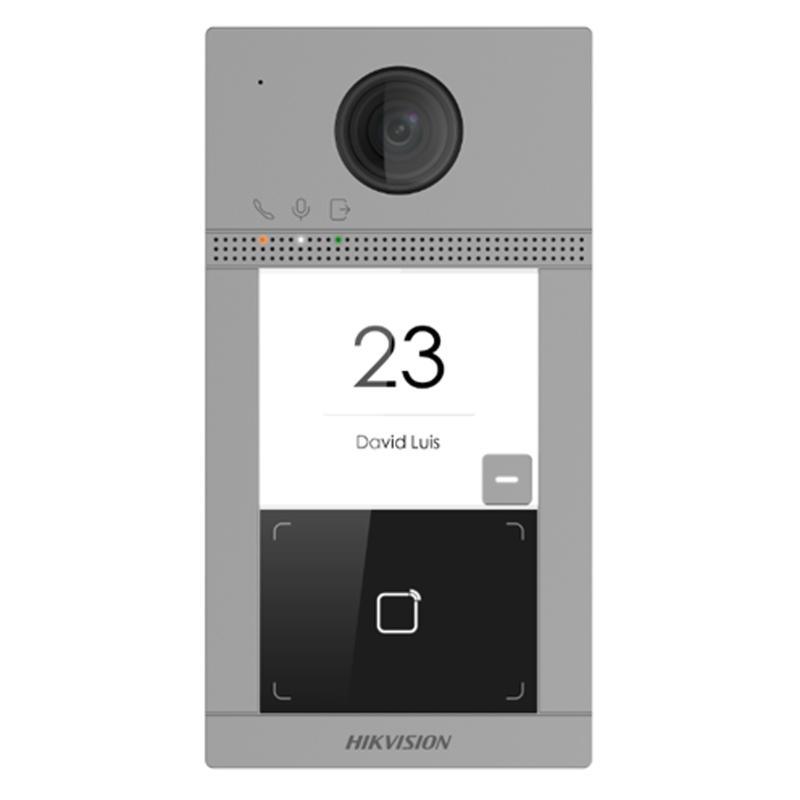

DS-KV8113-WME1(C)/Flush
1 Button Metal Villa Door Station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- ResolutionMain stream:1920 × 1080p and 1280 × 720p Sub stream: 640 × 480p
- FOVHorizontal: 124° Vertical: 75°
- Wide dynamic range (WDR)Digital WDR/76.9 dB
- Supplement lightIR light, up to 3 m
- Video compression standardH.264; H.265; MJPEG
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Card capacity10000
- Linked indoor station capacity1 (main indoor station)
- Sub door station capacity16
- Network parameters
- Network protocolTCP/IP, RTSP, IPV6, ONVIF
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Received frequency2.4 to 2.4835 GHz
- Transmitted frequency2.4 to 2.4835 GHz
- Bandwidth20/40 MHz
- Frequency power802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm
- Authentication
- Card reading frequency13.56 MHz
- Device interfaces
- Alarm input4
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit button2
- RS-4851
- USB/
- Wiegand/
- TF cardReserved
- Alarm output/
- Lock control2 relays, Max. 30 VDC 2 A
- Door contact input2
- General
- Button1 physical button
- InstallationFlush mounting
- Indicator3
- Net weight: 0.350 kg Gross weight:0.687 kg
- Protective levelIP65, IK08
- Working temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
- Working humidity10% to 95% (no-condensing)
- Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9″ × 3.6″ × 1.1″)
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
