描述

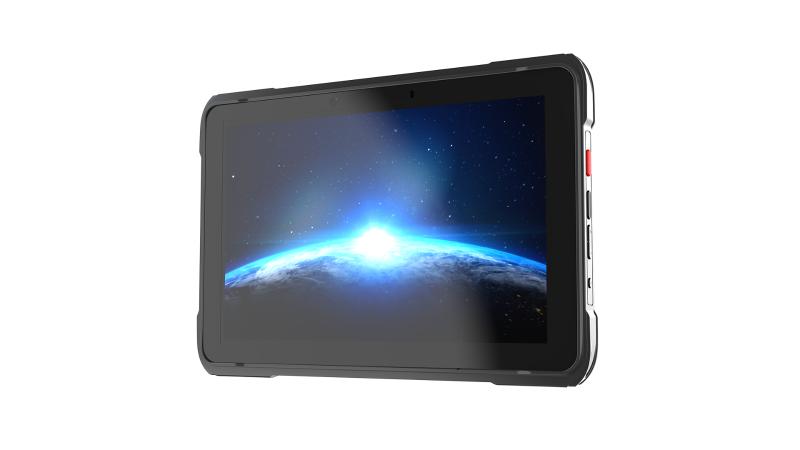

DS-MDP004
Rugged Tablet
DS-MDP004 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | Front camera: 5MP; Fix-focus Rear camera: 13MP; Auto-focus |
|---|---|
| Flashing Light | Supported |
Screen
| Screen Size | 10.1" |
|---|---|
| Screen Type | IPS; Capacitive touch panel; multi-touch, operation with wet hands, and gloved hands. |
| Resolution | 1920 * 1200 pixel |
Storage
| RAM | 4 GB |
|---|---|
| ROM | 64 GB |
| CPU | 8cores, 2cores 2.0GHz + 6cores 1.8GHz |
| Extended Storage | 1 TF card (Max. 2TB) |
Wireless Network
| Cellular Network | Only available for models with /GLE: GSM: B2/3/5/8 WCDMA: B1/2/5/8 TD-SCDMA: B34/39 LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20 |
|---|---|
| Wi-Fi Protocol | 802.11 a/b/g/n/ac |
| Wi-Fi Frequency Band | 2.400-2.483 GHz,5.15-5.25 GHz,5.725-5.850 GHz |
| Bluetooth | BT5.0 |
| Positioning Mode | GPS, BeiDou, Glonass, AGPS |
| NFC | Supported |
Interface
| Button | Side Keys Volume+,Volume-, Right Scan Key,Power Button,Function Key |
|---|---|
| Keypad | 3 Virtual keys+5 Side keys |
| SIM Card | Only available for models with /GLE /5G: 2 (Nano-SIM) |
| Charging Interface | Type C |
| PASM | Supported |
General
| Operating System | Android 14, without GMS |
|---|---|
| Dimension | 263.6*183*17.7mm |
| Power | Input: AC 100~240V, 50~60Hz Output: Default DC 5V2A adapter, supports up to DC 9V2A adapter. |
| Client | MDM |
| Vibration Motor | Supported |
| Audio | Supported |
| Gyroscope | Optional |
| G-sensor | Supported |
| Distance Sensor | Supported |
| Light Sensor | Supported |
| MIC | Supported |
| Drop Specifications | 1.5 m |
| Operating Condition | Operating Temp: -15℃～+55℃ Humidity: 95% or less (non-condensing) |
| Sealing | IP 67 |
| Electro Static Discharge (ESD) | ±15KV air discharge |
Battery
| Battery Type | Lithium-ion battery, integral |
|---|---|
| Capacity | 10000 mAh |
