描述

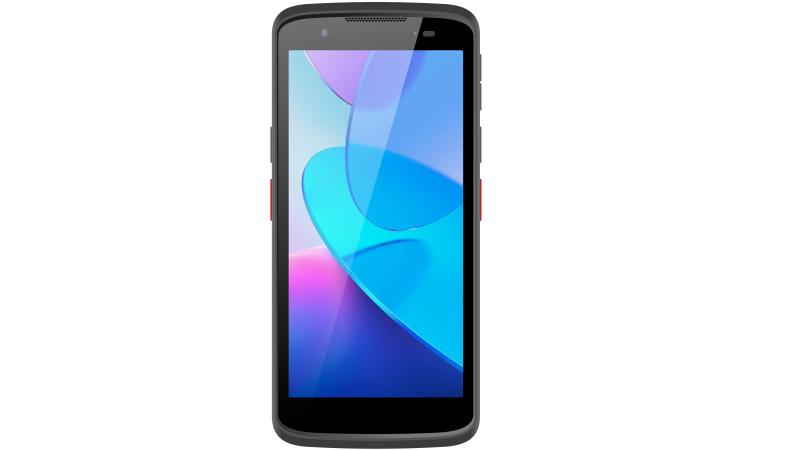

DS-MDT202
Handheld Terminal
DS-MDT202 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | Front camera: 5 MP; Fix-focus Rear camera: 13 MP; Auto-focus |
|---|---|
| Flashing Light | Supported |
Screen
| Screen Size | 5.5" |
|---|---|
| Screen Type | IPS; Capacitive touch panel; multi-touch |
| Resolution | 720 * 1440 pixel |
Storage
| CPU | 8cores,2.0GHz |
|---|---|
| RAM | 4 GB |
| ROM | 64 GB |
| Extended Storage | 1 TF card (Max. 512 GB) |
Wireless Network
| Cellular Network | Only available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/2/4/5/8 TD-SCDMA: A/F FDD-LTE: B1/2 /3/4/5/7/8/12/17/20/28A/28B TDD-LTE: B34/B38/B39/B40/B41 |
|---|---|
| Wi-Fi Protocol | 802.11 a/b/g/n/ac |
| Wi-Fi Frequency Band | 2.412~2.472 GHz, 5.15~5.25 GHz, 5.725~5.875 GHz |
| Bluetooth | BT 5.0 |
| Positioning Mode | GPS, BeiDou, Glonass, Galileo |
| NFC | Working Frequency: 13.56 MHz Protocol Standard: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Label Standard: M1 card (S50, S70), CPU card, NFC label, etc. |
Interface
| Button | Side Keys Volume+,Volume-,Left Scan Key, Right Scan Key, Power Button, 1 Reserved Buttons |
|---|---|
| Keypad | 3 Virtual keys+6 Side keys |
| SIM Card | 2 (Nano-SIM) |
| Charging Interface | Waterproof Type C USB interface, supports USB HighSpeed, supports OTG, supports fast charging |
General
| Operating System | Android 14.0 |
|---|---|
| OCR | Not supported |
| Client | MDM |
| Vibration Motor | Supported |
| Accelerometer | Supported |
| Distance Sensor | Supported |
| Light Sensor | Supported |
| Gyroscope | Supported |
| Geomagnetic | Supported |
| MIC | Supported |
| Drop Specifications | 1.5 m |
| Sealing | IP 68 |
| Dimension | 160*74.6*15.4mm |
| Power | Input: AC 100~240V, 50~60Hz Output: DC 5V, 2A |
| Operating Condition | -20℃～+50℃, Humidity: 95% or less (non-condensing) |
| Storage Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
Battery
| Battery Type | Replaceable and Rechargeable Li-ion battery; |
|---|---|
| Capacity | 5000 mAh |
Scanning Engine
| Model | Hikvision |
|---|---|
| Sensor | CMOS, Global shutter |
| Barcode Type | 1D: Code11,Code39,Code93,Code128,EAN8,EAN13,UPCA,UPCE, ITF25, Codabar, Matrix25, IND25, Chinapost, Msi – plessey, ISBN13, ITF14 2D: DM(ecc200), QR, MicroQR, Aztec, Hanxin, PDF417, MicroPDF417, DMECC140, MAXICODE |
| Decode Ranges | Code 39 (5 mil) : 95 mm ~ 180 mm Code 39 (10 mil) : 55 mm ~ 400 mm Code 39 (25 mil ) : 70 mm ~ 920 mm Code 128 (25 mil) : 90 mm ~ 1020 mm QR (15 mil) : 40 mm ~ 270 mm DM (10 mil) : 90 mm ~ 170 mm UPCA (10 mil) : 65 mm ~ 410 mm |
Accessories
| Standard Accessories | USB cable*1, power adapter*1,Wrist Strap*1 |
|---|
