描述
DS-PA201PS-16WE

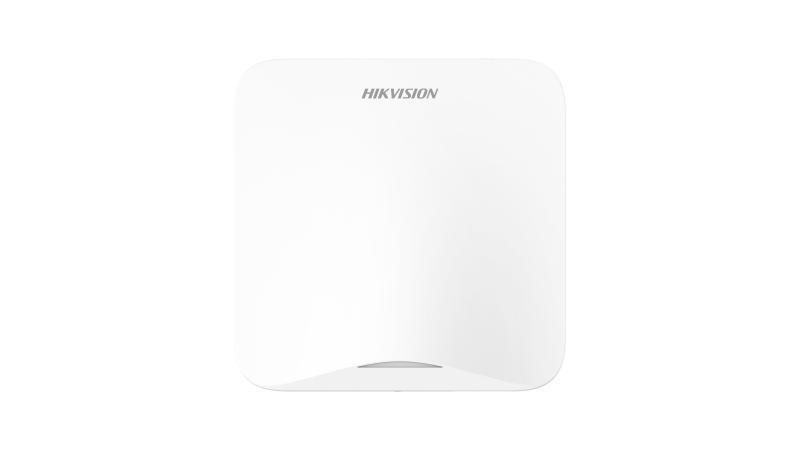

Control Panel
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Capacity
- ARC1
- Installer3
- User12
- Areas4
- Wireless zones16
- Wireless keypads4
- Wireless sounders4
- Admin1
- Logs1000
- Wireless keyfobs16
- Communication
- Transmission technology868.0-868.6 MHz
- Transmission range (free space)Up to 2,000 m (Between control panel and detectors/peripherals in open space and without nearby frequency band interference). *In actual applications, the maximum transmission distance may be affected by Radio Frequency environment and depends on the connected devices.
- Maximum effective radiated power (ERP)25 mW max
- Radio signal modulation2GFSK
- EncryptionAES-128
- Ethernet1 8P8C socket
- Ethernet speed≤10Mbps
- Wi-Fi802.11 b/g/n
- Cellular4G
- SIM slots1
- Software features
- Upgrade OTAYes
- ProtocolSIA-DCS *SIA-DCS ADM-CID *ADM-CID OTAP Other proprietary protocols
- Notifications
- APP notificationsYes
- SMS notificationsYes
- Calls notificationsYes
- ARC notificationsYes
- Event typesAlarms Faults System Events Operations
- Indication
- Indication methodLED
- Hardware features
- Tamper-ProofYes
- Power Supply
- Mains power110-240 V~, 50/60 Hz
- Power consumptionmax current: 0.2 A quiescent current: 90 mA
- Electrical characteristics
- Built-in backup batteryYes
- Battery lifeUp to 12 hours at normal temperature *Under standalone mode without control panel actions(arm or alarm trigger). Battery life may be reduced due to low environmental temperature.
- General
- Dimension (W×H×D)165 x 165 x 37.5 mm
- 410 g
- Operation temperature-10 °C to +55 °C
- Operation humidity10% to 90%
- Shell materialPlastic
