描述

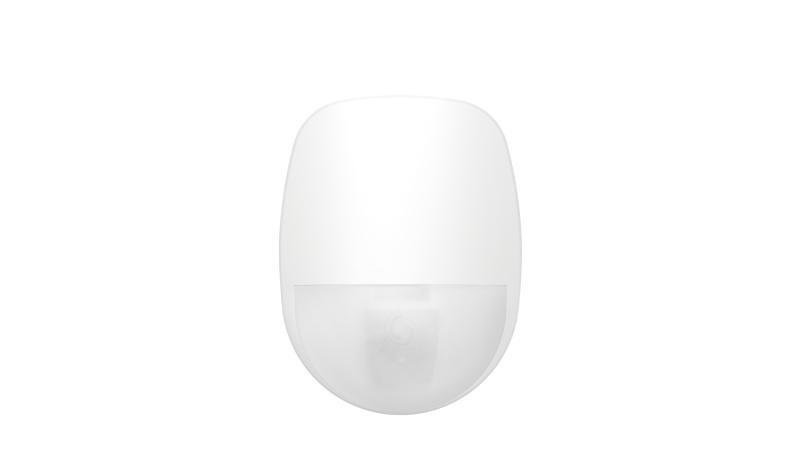

DS-PDC15-EG2(B)
Wired PIR Curtain Detector
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Detection Performance
- Detection MethodPassive Infrared
- Detection Range15m
- Detection Angle6.3°
- Detection Zones18
- Detectable Speed0.3～2m/s
- White Light Filter6500lux
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
- Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront
- Interface
- Alarm OutputNormally Closed
- LED IndicatorBlue(Alarm)
- Transmission
- Transmission MethodWired
- Electrical Characteristics
- Power Supply9 – 16 VDC
- Typical Voltage12 VDC
- Power ConsumptionMaximum current:11mA Max
- General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)65.4mm x 86.8mm x 45.5mm
- 68 g
- Mounting Height2.4 m to 3.6 m
- Mounting MethodWall;Ceiling
- Application ScenarioIndoor
- BracketOptional wall & ceiling accessory
