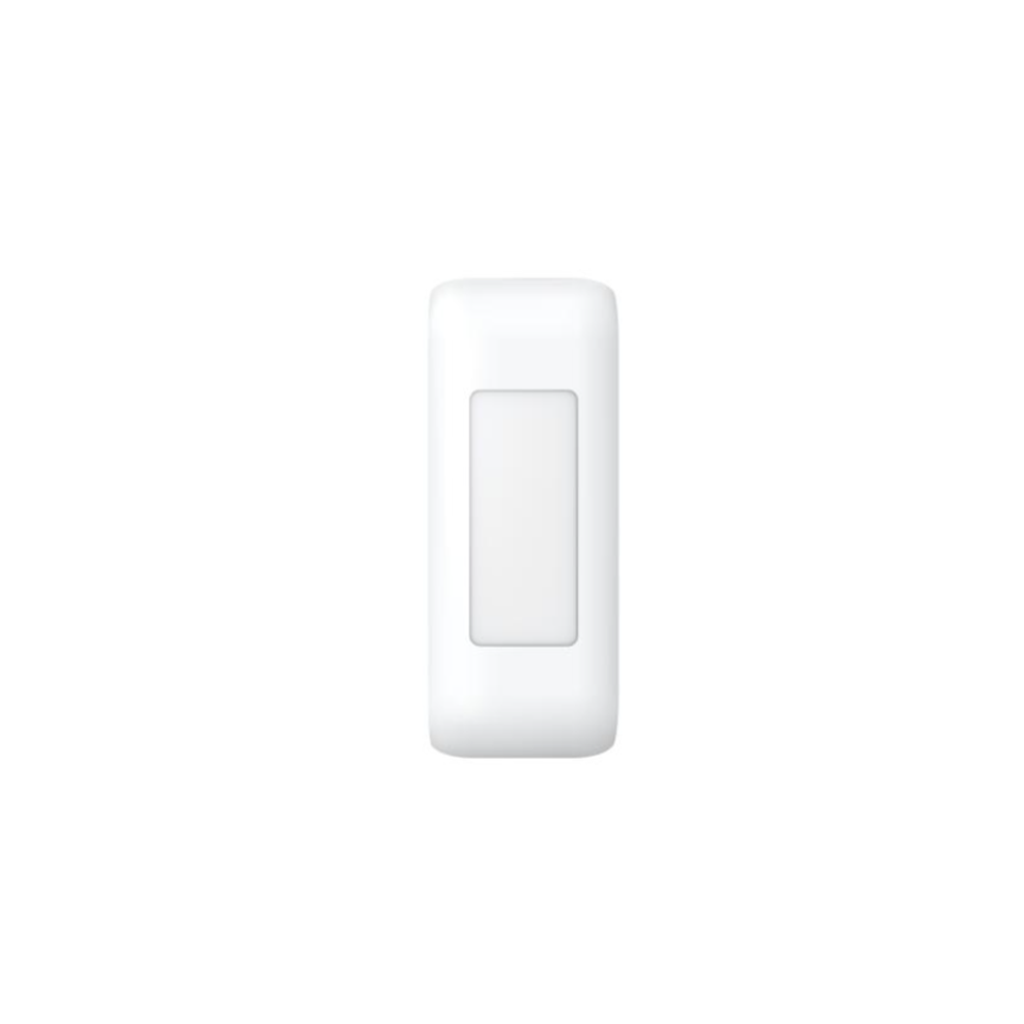

HIKVISION DS-PDC5NC-EG2
Wired PIR Curtain Detector
Features
- Slim design for window frame installation
- Automatic sensitivity
- Directional detection support
- Pack of 10 pcs
Specification
| Model | DS-PDC5NC-EG2 | |
| Detection Performance |
Detection Method | Passive Infrared |
| Detection Range | 5 m | |
| Detection Angle | 5° | |
| Detection Zones | 28 | |
| Detectable Speed | 0.3～2 m/s | |
| Sensitivity | Auto | |
| White Light Filter | 6500 lux | |
| Digital Temperature Compensation | Support | |
| Creep Zone Protection | Support | |
| Feature | Digital Processing | Support |
| Tamper Protection | Front | |
| Directional Detection | Support | |
| Interface | Alarm Output | Normally Closed |
| LED Indicator | Blue(Alarm) | |
| Transmission | Transmission Method | Wired |
| Electrical Characteristics | Power Consumption | 15 mA Max |
| Power Supply | 9 to 16 VDC | |
| Typical Voltage | 12 VDC | |
| General | Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Operation Humidity | 10% to 90% | |
| Dimension(WxHxD) | 29.7 mm × 78.1 mm × 24.8 mm | |
| Weight | 31.5 g | |
| Mounting Height | 2.4 to 4 m | |
| Mounting Method | Ceiling | |
| Application Scenario | Indoor | |
