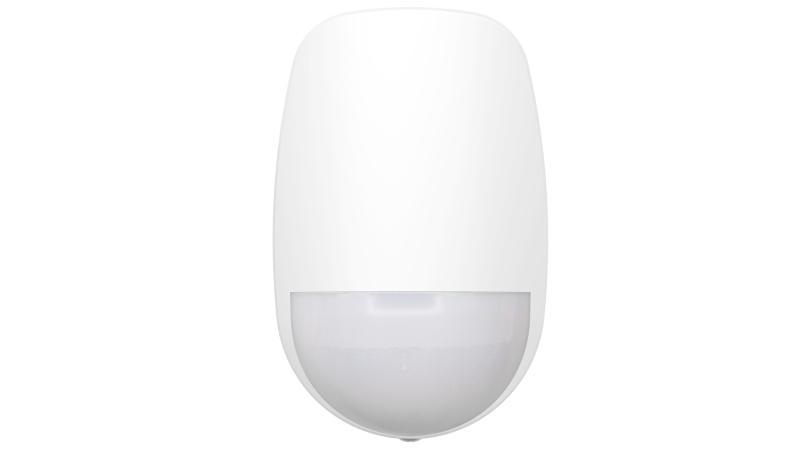

DS-PDD15AM-EG2
Wired Dual-Tech AM Detector
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Detection Performance
- Detection MethodPassive Infrared;Microwave
- Detection Range15m
- Detection Angle85.9°
- Detection Zones52
- Detectable Speed0.3～2m/s
- SensitivityAuto;Low
- White Light Filter6500lux
- Microwave Frequency24GHz(24.15～24.25GHz)
- Digital Temperature CompensationSupport
- Creep Zone ProtectionSupport
- Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront
- Anti-maskingSupport
- Anti-cloakingSupport
- Anti-blockingSupport
- Interface
- Alarm OutputNormally Closed
- LED IndicatorGreen(PIR), Red(Microwave), Blue(Alarm)
- Transmission
- Transmission MethodWired
- Electrical Characteristics
- Power Supply9 to 16 VDC
- Typical Voltage12 VDC
- Power ConsumptionMaximum current：25mA@12VDC Quiescent current： 17mA@12VDC
- General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)65.7 mm (2.59 “) × 103.8 mm (4.09 “) × 45.5 mm (1. 79 “)
- 100g
- Mounting Height1.8 m to 2.4 m
- Mounting MethodWall
- Application ScenarioIndoor
- BracketOptional wall & ceiling accessory
