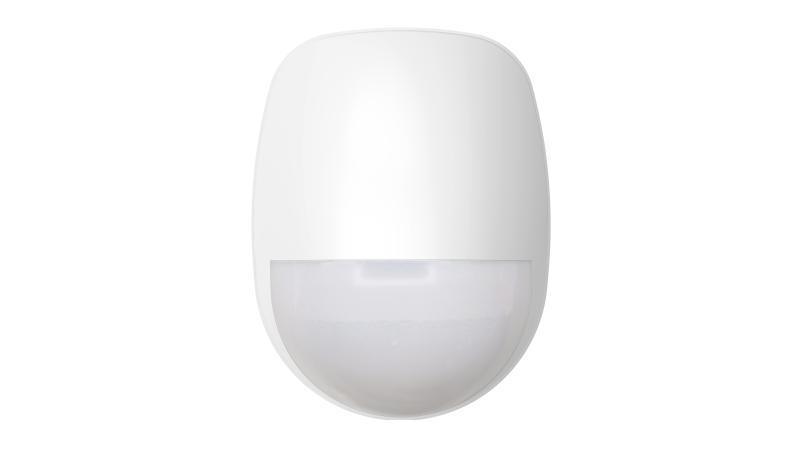

DS-PDP18-EG2(B)
Wired PIR Detector
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Detection performance
- Detection range 18m
- Detection Angle 85.9°
- Velocity range 0.3~2m/s
- Sensitivity adjustment high;auto;low
- Pet Immunity 15KG
- White light filter 6500 lux
- Digital temperature compensation Support
- Digital processing Support
- Detection method Passive Infrared
- Communication
- Transmission method Wired
- Software features
- Tamper-Proof Front
- Hardware features
- Alarm output Normally close
- Indicator Blue(alarm)
- Electrical characteristics
- Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Operation temperature -10 °C to 55 °C (14 °F to 131 °F)
- Typical voltage 12 VDC
- Operation humidity 10% to 90%
- Power supply 9 to 16 VDC
- Power consumption Maximum current：12mA @12VDC Quiescent current：11mA @12VDC
- General
- Application scenario Indoor
- Dimension (W×H×D) 65.4mm × 86.8mm × 45.5mm
- 68g
- Mounting height 1.8 to 2.4 m
- Mounting method Wall;Ceiling
- Bracket Optional wall & ceiling accessory
- Sealed optics Support
- Shell material PC+ABS
