描述
海康威視 DS-PDP18-HM-WB 是無線雙 PIR 探測器，偵測範圍 18 米、角度 90°，可調高／低安裝，IP65 適合戶外，以跳頻防干擾傳輸。香港防盜為安裝商及經銷商，規格以原廠為準。

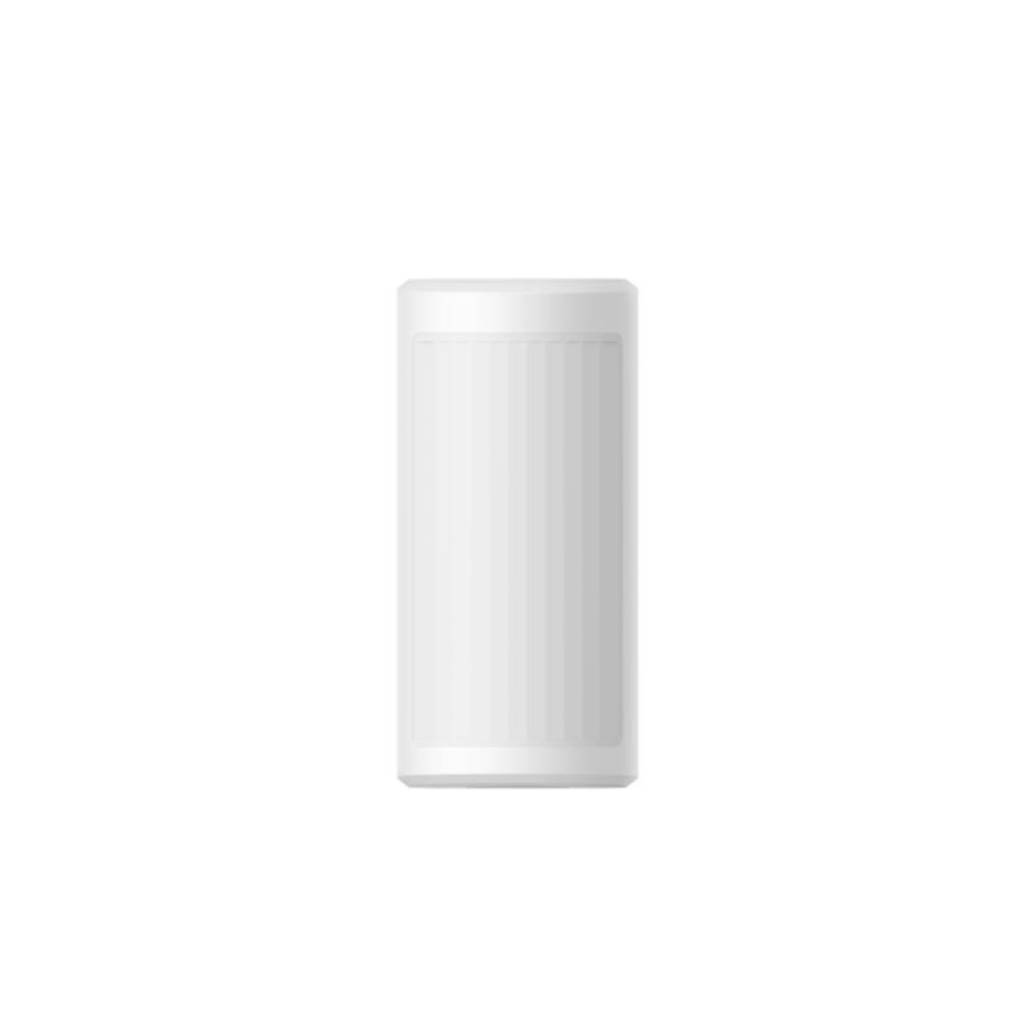

HIKVISION DS-PDP18-HM-WB
Wireless Double PIR Detector
Features
- High/Low mount adjustment
- IP65 weather resistance for outdoor application
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
Specification
| Detection Performance | |
| Detection Method | Passive infrared |
| Detection Range | 18 m |
| Detection Angle | 90° |
| Detection Zones | 118 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | Auto,Pet |
| White Light Filter | 20000lux |
| Pet Immunity | Up to 24 kg |
| Digital Temperature Compensation | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front,Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power up enrolling |
| LED Indicator | Blue (Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up,Remote ID,QR Code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time) |
| Power Supply | Battery powered |
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 67.3 mm × 141.6 mm × 60 mm |
| Weight | 301 g |
| Mounting Height | 2.5 to 3 m High Mount 0.8 to 1.2 m Low Mount |
| Mounting Method | Wall |
| Application Scenario | Indoor, Outdoor |
| Bracket | Adjustment bracket included |
