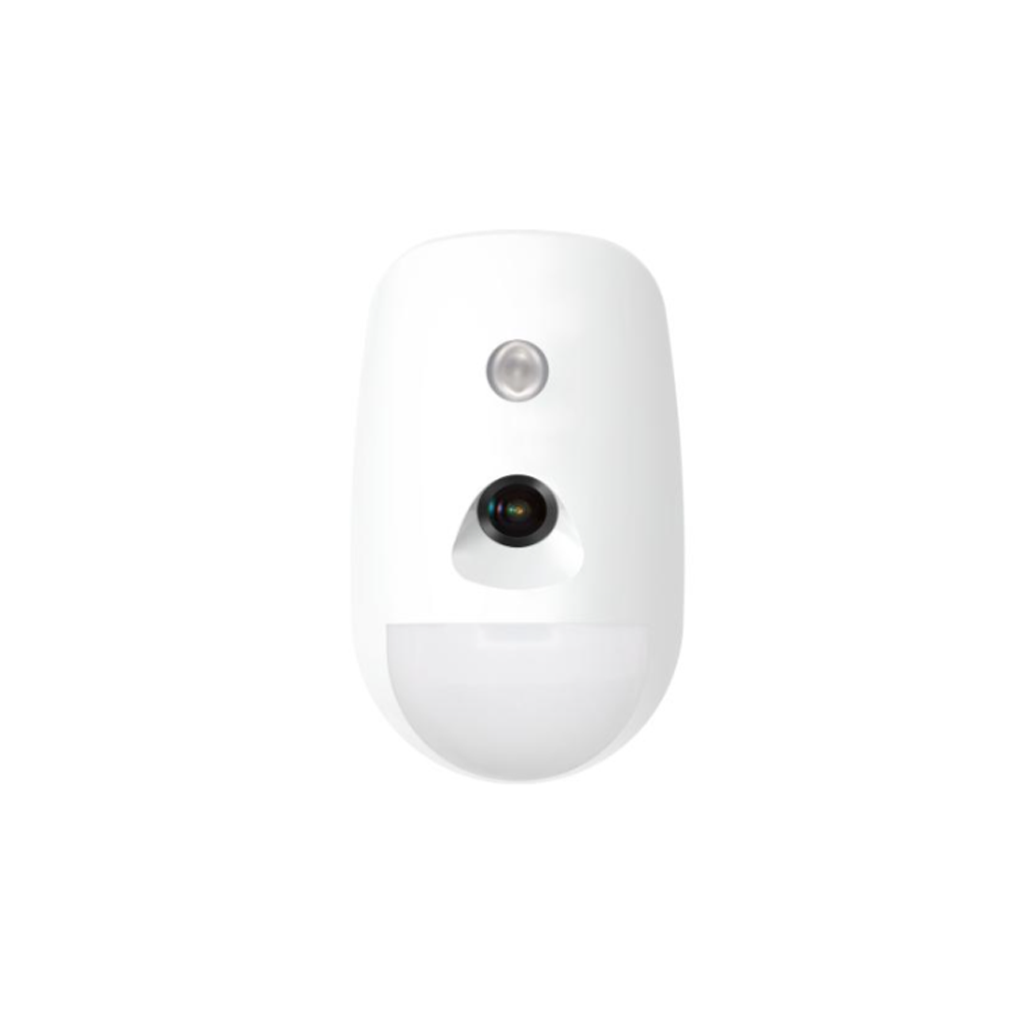

HIKVISION DS-PDPC12P-EG2-WB
Wireless PIR-Camera Detector
Features
- Detection range: 12m / 85.9°
- Up to 30KG pet immunity
- SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
- Polarizing IR lens design for more uniform night illumination and excellent night shots
- Large integrated memory buffer for image storage
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
Specification
| Available models | DS-PDPC12P-EG2-WB |
| Subseries | Motion Detectors |
| Day/Night Switch | Color/Black & White |
| Weight | 210g |
| RF Frequency | 433MHz |
| Application Scenario | Indoor |
| EN Grade | None |
| Sensitivity | High;Auto;Pet |
| Dimension(WxHxD) | 72.2mm × 120.5mm × 56.7mm |
| Detection Method | Passive Infrared;Video Verification |
| Detection Range | 12m |
| Detection Angle | 12m |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2m/s |
| White Light Filter | 6500lux |
| Pet Immunity | 30Kg |
| Digital Temperature Compensation | Support |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front;Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Transmission Technology | CAM-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | AES-128 Encryption |
| Enrolling Method | Power up;Remote ID;QR Code |
| Standard Battery Life | Up to 6 years (standby time) |
| Typical Voltage | 3V |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operation Humidity | 10% to 90% |
| Mounting Height | 1.8 to 2.4m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Creep Zone Protection | Support |
| Bracket | Optional Wall & Ceiling Accessory |
| Resolusion | 160*120;320*240;640*480 |
| Image Type | JPEG |
| Fill Light | Infrared Light |
| Fill Range | 12m |
