描述

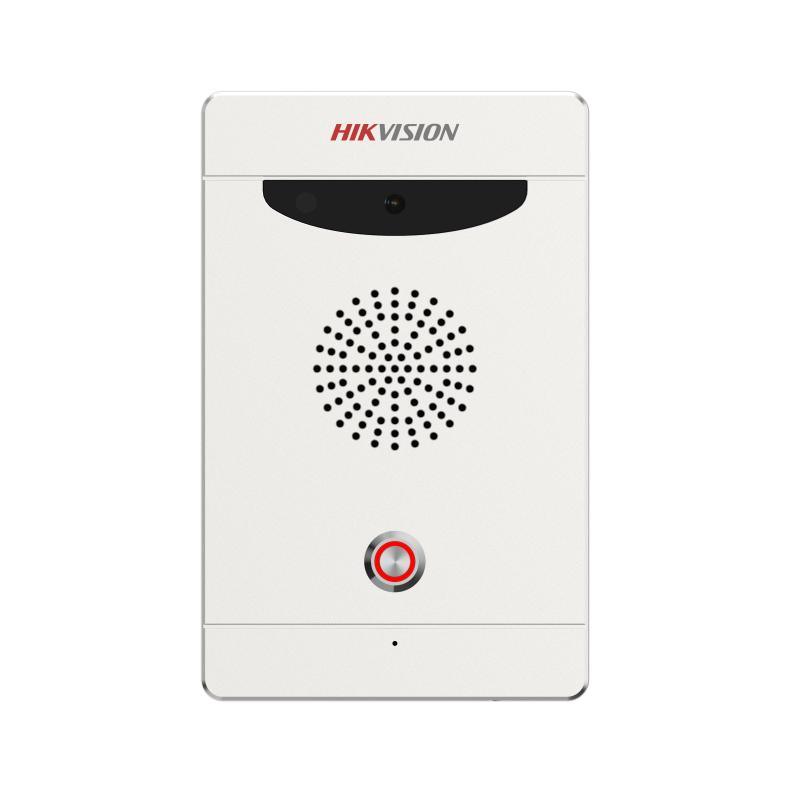

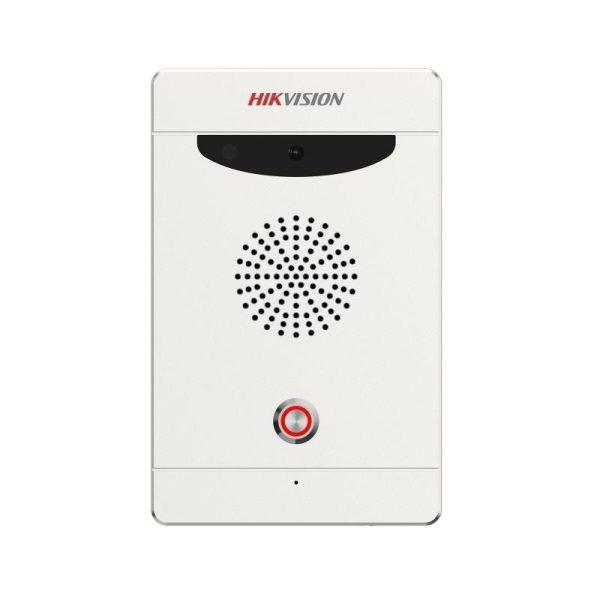

HIKVISION DS-PEA103-CK1-E1 Video panic intercom panel 是海康威視緊急／求助對講，用於電梯廳、車場或周界。香港防盜為安裝商及經銷商。並非大堂訪客對講。規格以下方原廠資料為準。
DS-PEA103-CK1-E1
Video panic intercom panel
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Hardware features
- SD cardStandard Micro SD Card Slot, Max. 256G
- Tamper-ProofSupport
- Video
- Fill lightInfrared Light
- Resolusion1920*1080
- Field angleHorizontal: 86° Vertical: 47° Diagonal: 99°
- Day/night switch modeAuto switching
- Video compression standardH.264;H.265
- Frame rate25fps
- Audio
- Audio output1-ch 3 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output
- Audio input1-ch Built-in Omnidirectional Microphone Pickup Distance: 1 m 1-ch 3.5 mm Audio Interface for External Audio Input
- Audio encoding/decoding standardG.711U/PCM/ADPCM/AAC/OPUS
- Audio compression code rate16Kbps;64Kbps
- Audio qualitySmart Noise Suppression
- Electrical characteristics
- Power supply12 VDC, Standard PoE
- Operation humidity10％ to 90％
- Operation temperature-25°C to 55°C
- Power consumption≤ 8W
- General
- IK rateIK08
- IP rateIP65
- Installation methodWall-mounted and Embedded-mounted
- Dimension(WxHxD)114 mm × 179mm × 41.1 mm
- Application scenarioOutdoor
- Shell materialAluminium Alloy
- Device management
- Alarm output2
- Alarm input2
