描述
HIKVISION DS-PEA4H-10 是海康威視緊急／求助對講，用於電梯廳、車場或周界。香港防盜為安裝商及經銷商。並非大堂訪客對講。規格以下方原廠資料為準。

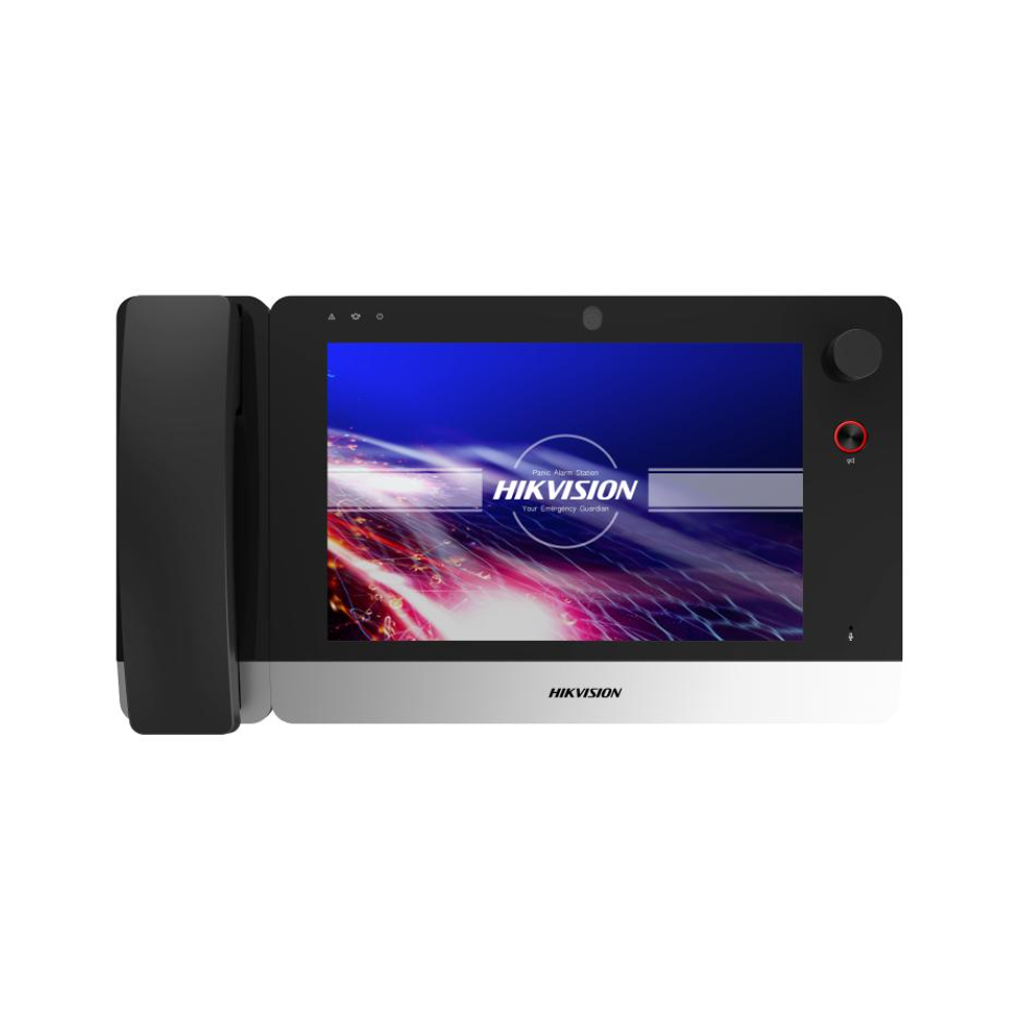

HIKVISION DS-PEA4H-10
Panic Alarm Master Station
Features
- 10.1-inch touch screen
- Real-time alarm information display
- Supports microphone rod and VGA
- Supports auto noise suppression and echo cancellation
- Easy installation with Power over Ethernet (PoE) technology
Specification
| Software features | |
| User interface | Flat design |
| Hardware features | |
| SD card | 1, Micro SDXC (≤ 128 GB) |
| USB | 1, USB 3.0 1, USB 2.0 |
| Serial port | 2, RS-485 half-duplex interface |
| PSTN | RJ11, 1 for handset |
| Video interface | VGA，HDMI |
| Netowrk interface | 1RJ45,10 M/100 M/1000 M self adaptive |
| Audio interface | Built-in microphone, handset, and mic support |
| Video | |
| Resolusion | 1920*1080 |
| Frame rate | PAL: 25 FPS, NTSC: 30 FPS |
| Audio | |
| Intercom | Built-in Microphone, Handset、loudspeaker |
| Audio output | Built-in loudspeaker, and handset |
| Audio input | Built-in microphone, handset, and mic support |
| Audio compression code rate | 16Kbps;64Kbps |
| Electrical characteristics | |
| Power supply | 12 VDC, PoE (IEEE 802.3 at/af) |
| Operation humidity | 10％ to 90％ |
| Operation temperature | -10 ℃ to 55 ℃ |
| Power consumption | ≤15 W |
| Display | |
| Display screen | 10.1 inch colorful TFT LCD, 1280 × 800 |
| General | |
| Dimension(WxHxD) | with handset: 361mm (14.2 inch) × 65mm (2.6 inch) × 197mm (7.8 inch) without handset: 291mm (11.5 inch) × 41mm (1.6 inch) × 197mm (7.8 inch) |
| Weight | ≤2.5 kg (88.2 oz) |
| Device management | |
| Alarm output | 4 |
| Alarm input | 4 |
| Relay output | 4, relay output |
| Camera | CMOS, 2 MP |
| Report method | |
| Protocol | TCP/IP, HIK-SIP, and RTSP |
